Front Side Pressure Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the front door trim.

    (Refer to Body (Interior and Exterior) - "FRONT DOOR TRIM ")

  3. Disconnect the Front side pressure sensor connector (B).
  4. Loosen the screw and then remove the front side pressure sensor (A).

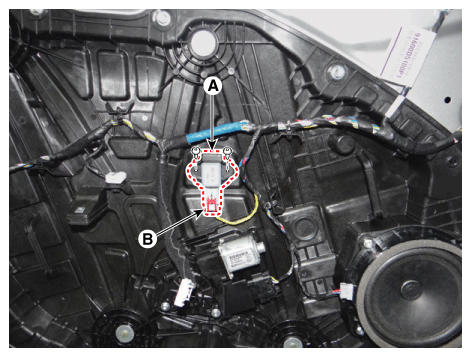

Fig 1: Locating Front Side Pressure Sensor And Connector
G12141991Courtesy of KIA MOTORS AMERICA, INC.
