Section 4 (Supplemental Restraint System Control Module (SRSCM) And Sensors (Except HEV))
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Circuit Diagram (3)
Circuit Diagram (3)
WARNING:
This page is about a different variant/trim than selected.

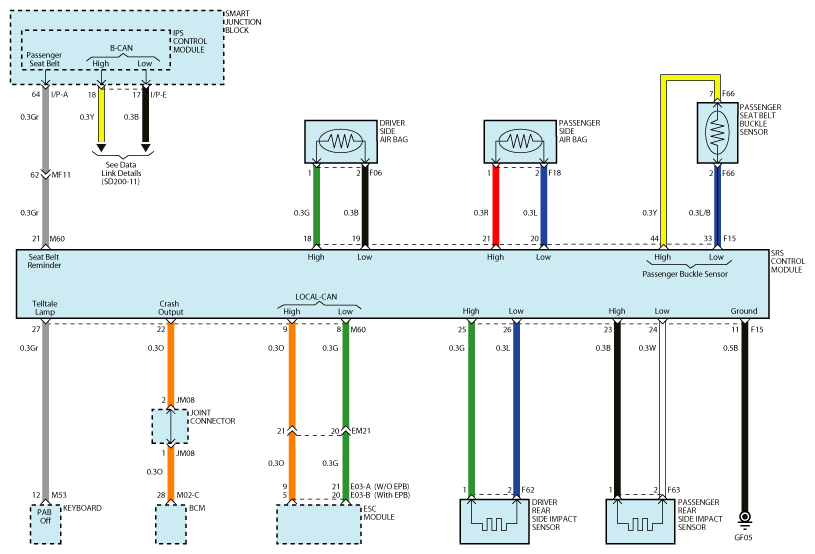

Fig 1: SRS Control Module Circuit (3)
Courtesy of KIA MOTORS AMERICA, INC.
