Variant Coding Procedure

WARNING: This page is about a different variant/trim than selected.

On-Line type on KDS/GDS
1. Ignition "OFF", connect KDS/GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

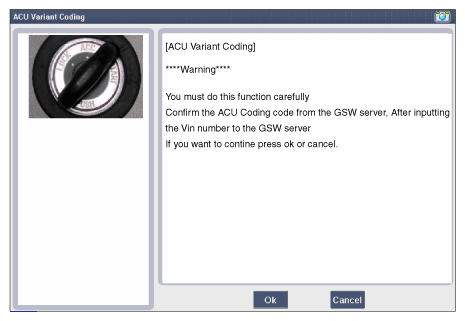

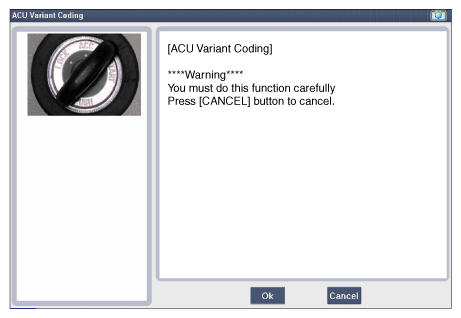

  1. Initial ACU Variant Coding screen

    Fig 1: Scantool Display - Initial ACU Variant Coding Screen
    Courtesy of KIA MOTORS AMERICA, INC.

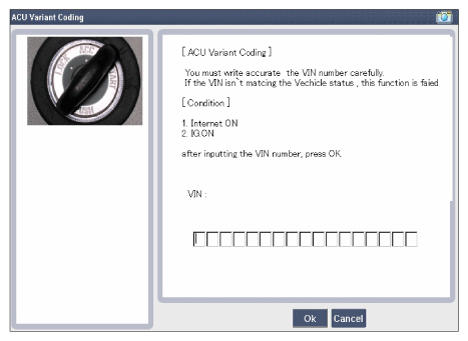

  2. VIN Code entering screen

    Fig 2: Scantool Display - VIN Code Entering Screen
    Courtesy of KIA MOTORS AMERICA, INC.

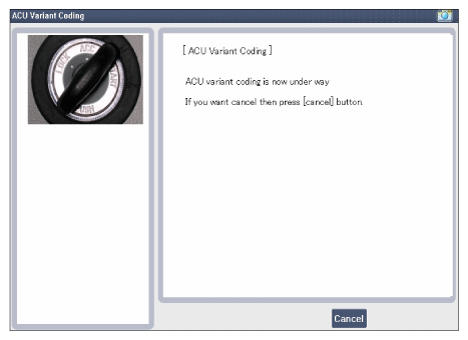

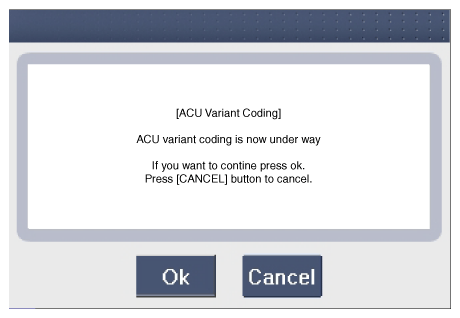

  3. Variant coding's proceeding screen-1

    Fig 3: Scantool Display - Variant Coding'S Proceeding Screen-1
    Courtesy of KIA MOTORS AMERICA, INC.

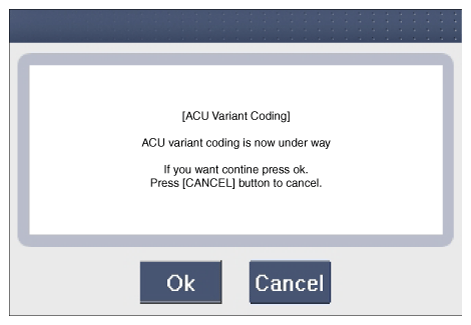

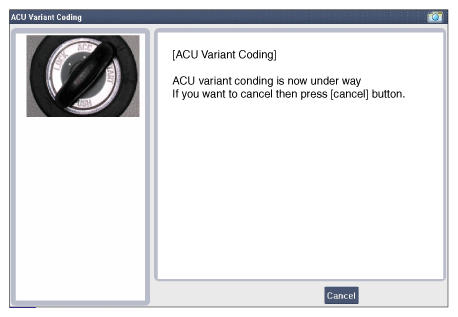

  4. Variant coding's proceeding screen-2

    Fig 4: Scantool Display - Variant Coding'S Proceeding Screen-2
    Courtesy of KIA MOTORS AMERICA, INC.

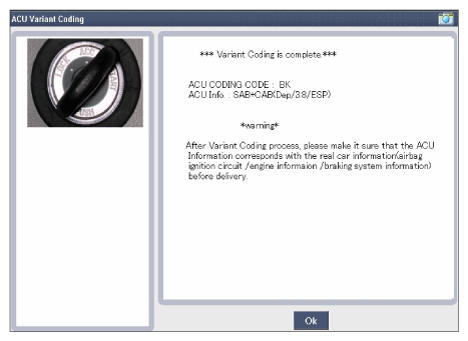

  5. Variant coding is completed
  Fig 5: Scantool Display - Variant Coding Completed
  Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

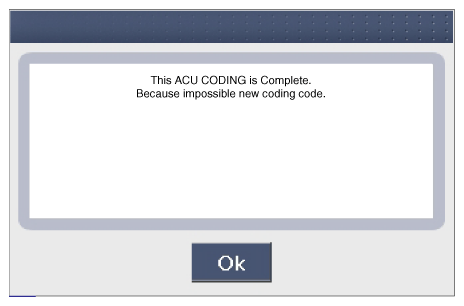

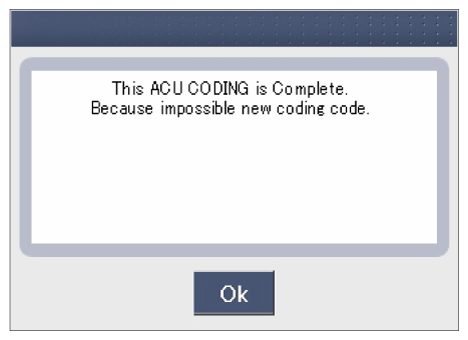

1. This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.

  Fig 6: Scantool Display - ACU Coding
  Courtesy of KIA MOTORS AMERICA, INC.

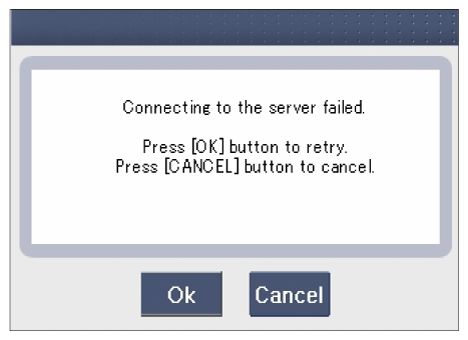

2. Screen of communication failure

  Fig 7: Scantool Display - Communication Failure
  Courtesy of KIA MOTORS AMERICA, INC.
Off-line type on KDS/GDS (This can be used when not connecting to internet)

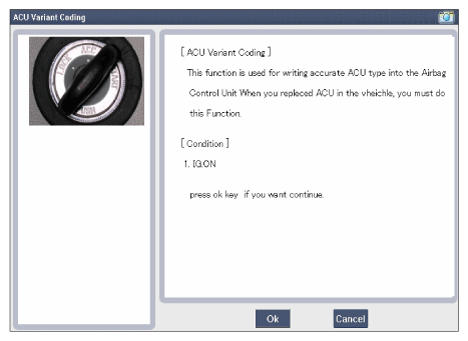

1. Initial ACU Variant Coding screen

  Fig 8: Scantool Display - Initial ACU Variant Coding Screen
  Courtesy of KIA MOTORS AMERICA, INC.

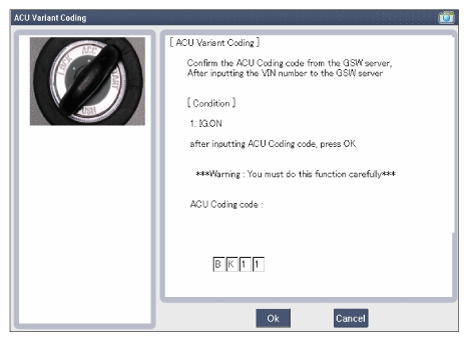

2. ACU Coding Code entering screen

  Fig 9: Scantool Display - ACU Coding Code Entering Screen
  Courtesy of KIA MOTORS AMERICA, INC.
3. Screen of rechecking ACU Coding code's entering

  Fig 10: Scantool Display - Rechecking ACU Coding Code'S Entering
  Courtesy of KIA MOTORS AMERICA, INC.
4. Variant coding's proceeding screen-1

  Fig 11: Scantool Display - Variant Coding's Proceeding Screen-1
  Courtesy of KIA MOTORS AMERICA, INC.
5. Variant coding's proceeding screen-2

  Fig 12: Scantool Display - Variant Coding's Proceeding Screen-2
  Courtesy of KIA MOTORS AMERICA, INC.
6. Variant coding is completed
Fig 13: Scantool Display - Variant Coding Completed
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
1. This screen is opened when you try the variant coding again on the SRSCM which has been performed variant coding.
Fig 14: Scantool Display - ACU Coding
Courtesy of KIA MOTORS AMERICA, INC.
