Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the console assembly.
(Refer to Floor console - "Floor Console Assembly ")

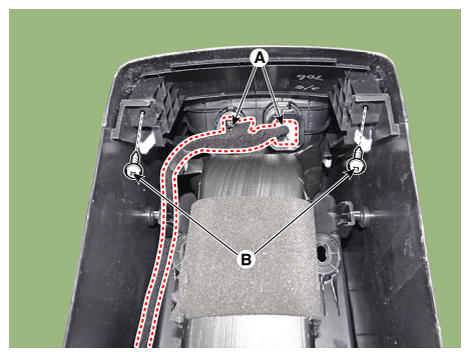

Disconnect the connector (A) and loosen the mounting screws (B).

Fig 1: Locating Connector And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

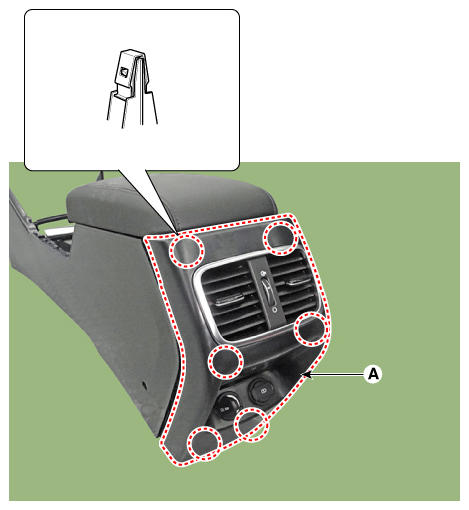

Using a remover, remove the rear console cover (A).

Fig 2: Locating Rear Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure the connector is connected properly.
Replace any damage clips.
