Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear console cover.
(Refer to Floor Console - "Rear Console Cover ")
After loosen the mounting screws, remove the console armrest (A).

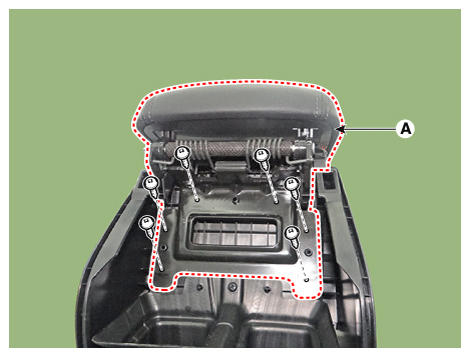

Fig 1: Locating Console Armrest With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
