Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

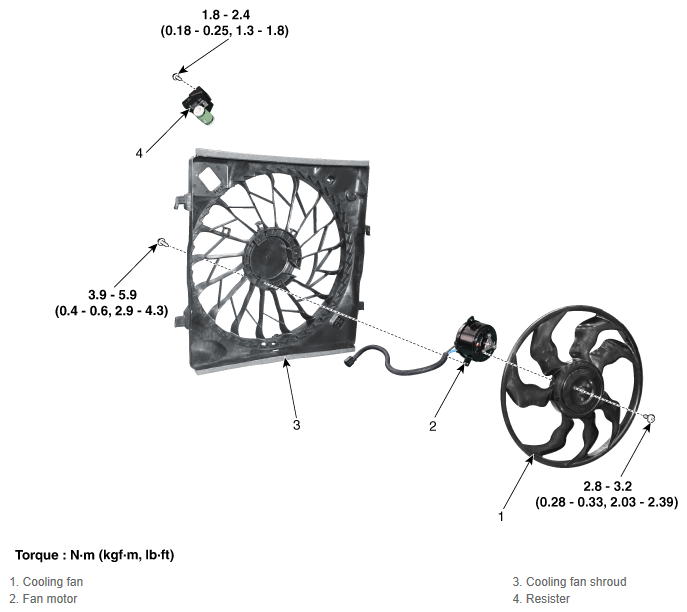

Fig 1: Cooling Fan Components With Torque Specification
G12139518Courtesy of KIA MOTORS AMERICA, INC.
