Theta-II 2.4 GDI

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

  2. Using a spark plug wrench, remove the spark plug (A).
    NOTE:
    • Be careful that no contaminates enter into spark plug holes.

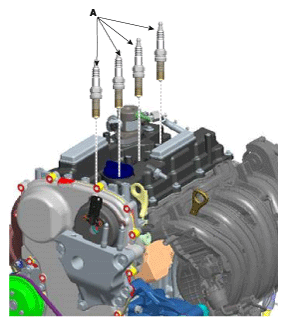

    Fig 1: Locating Spark Plugs (Theta-II 2.4 GDI)
    G12139478Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
