Ground Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF".
Disconnect Passenger side Body sensor ECU connector.
Measure resistance between Pin No. 4 (Ground) terminal of the Passenger side Body sensor ECU harness connector and chassis ground.
Specification: 1 Ω below

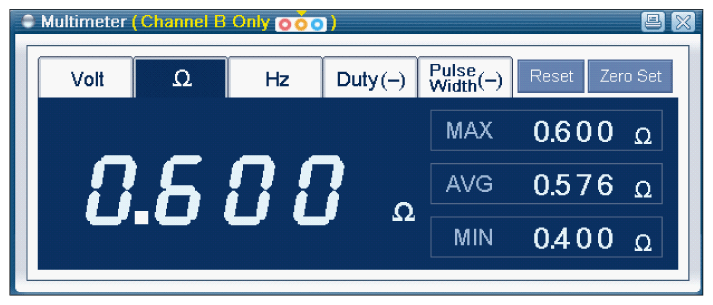

Fig 1: Screen Display - Passenger Side Body Sensor Resistance
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured resistance within specification?
YES
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace Passenger side Body sensor ECU and then go to "Verification of Vehicle Repair " procedure.
NO
- Check for open/short in harness.
- Repair as necessary and then go to "Verification of Vehicle Repair " procedure.
