Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.

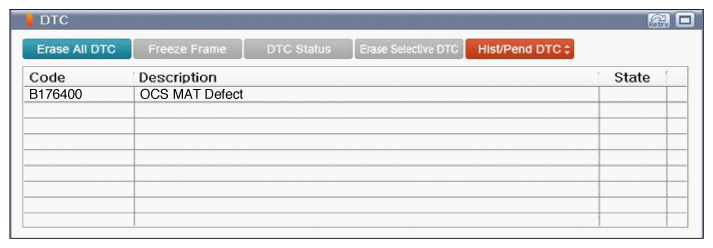

Fig 1: Screen Display - Diagnostic Trouble Code (DTC) Description
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "Monitor KDS/GDS Data " procedure.
NO
- Go to "Verification of Vehicle Repair " procedure.
