Monitor KDS/GDS Data

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF", connect KDS/GDS.
Ignition "ON", select "Current Data" mode.
Monitor the "Read Class Status" parameter on the KDS/GDS.

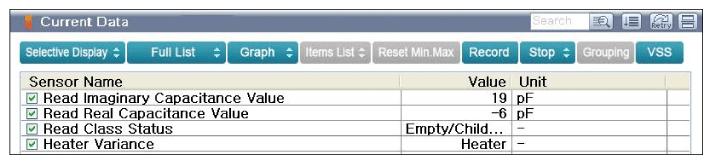

Fig 1: Screen Display - Passenger Unoccupied
Courtesy of KIA MOTORS AMERICA, INC.

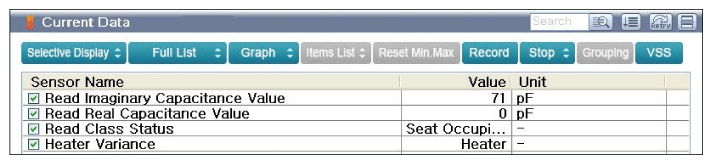

Fig 2: Screen Display - Passenger Occupied
Courtesy of KIA MOTORS AMERICA, INC.
Has a problem been found?
YES
- Go to "Wiring Inspection " procedure.
NO
- Fault is intermittent caused by poor contact in the part's and/or Passenger side Body sensor Mat & ECU connector or was repaired and Passenger side Body sensor Mat & ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
