Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the center fascia upper panel.
(Refer to Body - "CENTER FASCIA PANEL ")

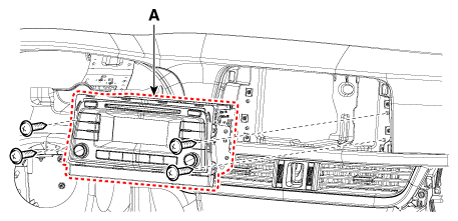

Remove the audio head unit (A) after loosening the screws.

Fig 1: Locating Audio Head Unit With Screws
Courtesy of KIA MOTORS AMERICA, INC.

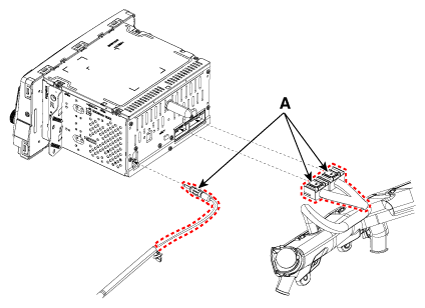

Remove the audio head unit after disconnecting the connectors and antenna cable (A).

Fig 2: Locating Connectors And Antenna Cable

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When the compact disc is not ejected, do not remove it by force.
