Repair Procedures: Removal

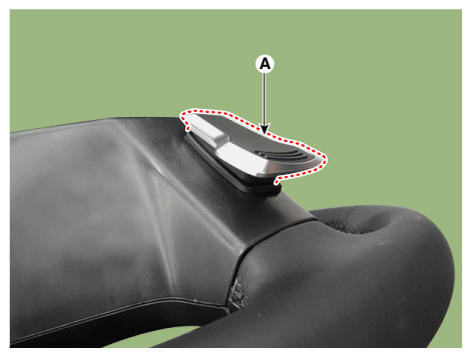

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")
Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]

Fig 1: Paddle Shift Switch Mounting Screws (LH)
Courtesy of KIA MOTORS AMERICA, INC.

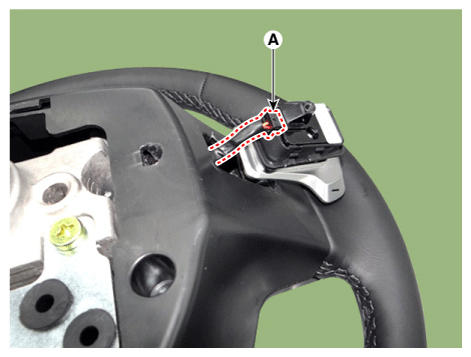

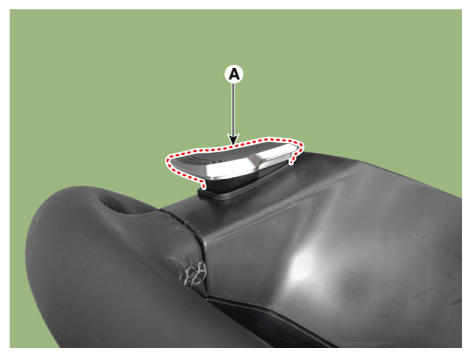

Fig 2: Locating Paddle Shift Switch (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 3: Paddle Shift Switch Mounting Screws (RH)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Locating Paddle Shift Switch (RH)
Courtesy of KIA MOTORS AMERICA, INC.

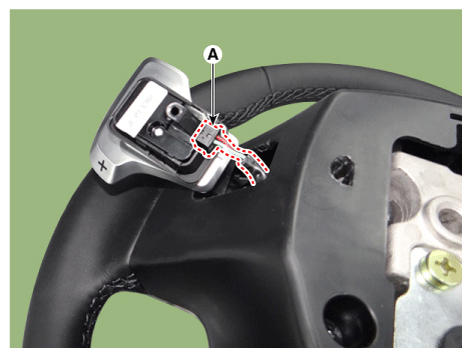

Disconnect the paddle shift switch connector (A).
[LH]

Fig 5: Locating Paddle Shift Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 6: Locating Paddle Shift Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.

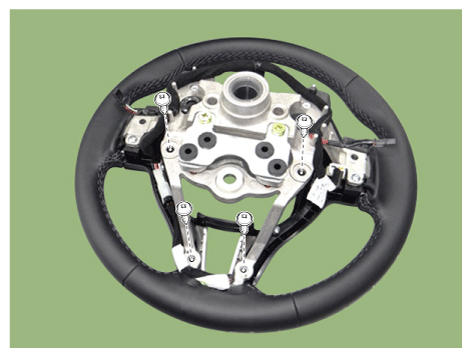

Remove the screws from the steering back cover (A).

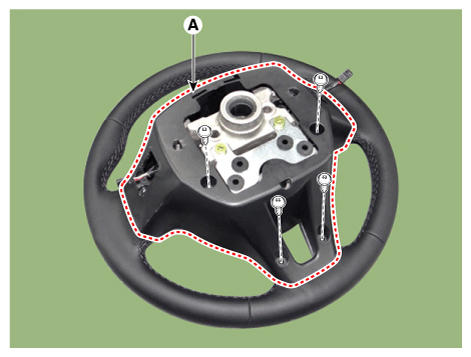

Fig 7: Locating Steering Back Cover With Screws
Courtesy of KIA MOTORS AMERICA, INC.

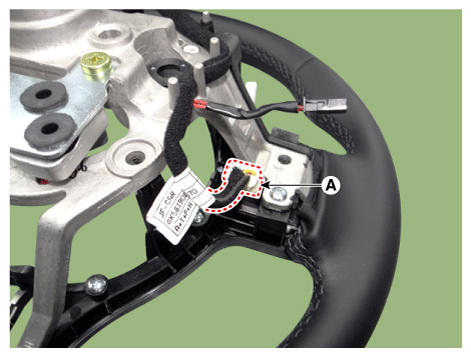

Disconnect the steering remote control connector (A).
[LH]

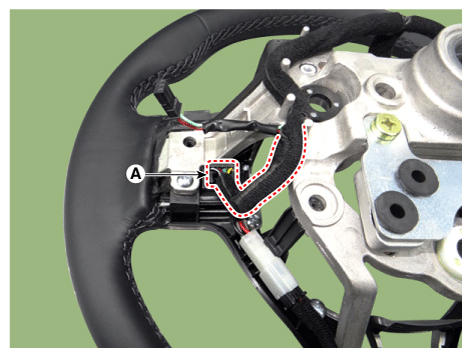

Fig 8: Locating Steering Remote Control Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 9: Locating Steering Remote Control Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.

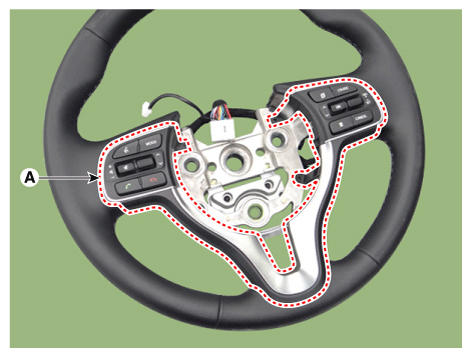

Remove the steering remote control assembly (A) after loosening the mounting screws.

Fig 10: Steering Remote Control Assembly Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Locating Steering Remote Control Assembly
Courtesy of KIA MOTORS AMERICA, INC.

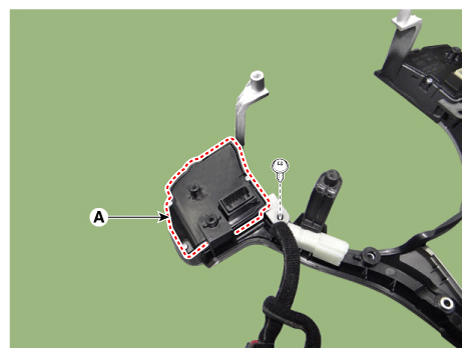

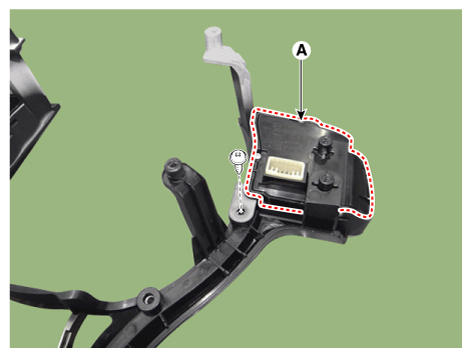

Remove the steering remote control (A) after loosening the mounting screws.
[LH]

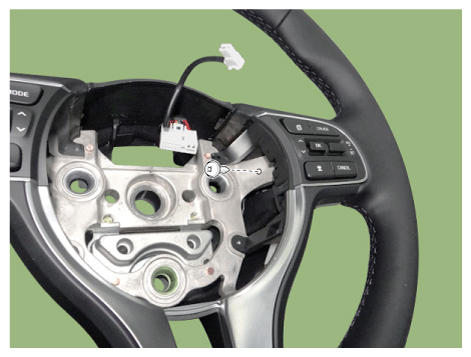

Fig 12: Locating Steering Remote Control With Mounting Screws (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

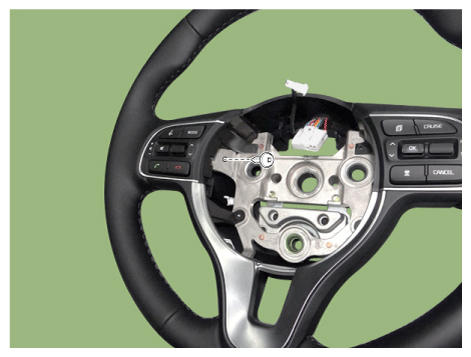

Fig 13: Locating Steering Remote Control With Mounting Screws (RH)
Courtesy of KIA MOTORS AMERICA, INC.
