Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

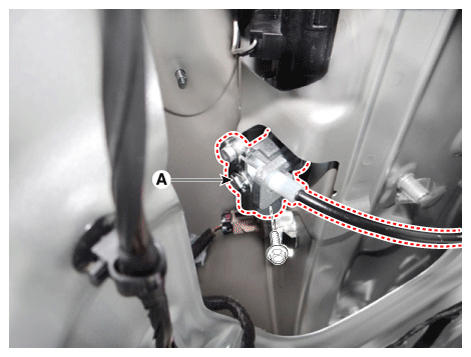

  3. Remove the trunk key set (A) after loosening the bolt.
    Fig 1: Locating Trunk Key Set With Bolt
    G12143036Courtesy of KIA MOTORS AMERICA, INC.

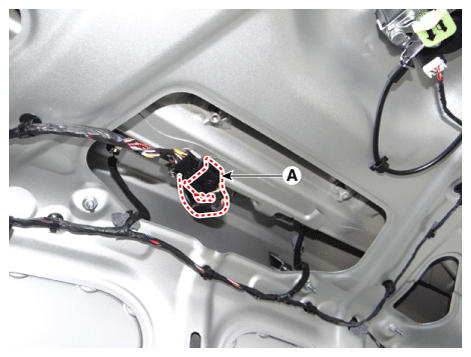

  4. Disconnect the back view camera connector (A).
    Fig 2: Locating Back View Camera Connector
    G12143037Courtesy of KIA MOTORS AMERICA, INC.

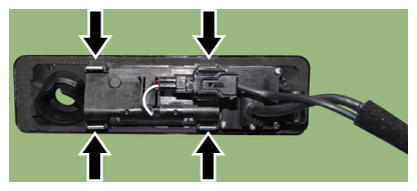

  5. Remove the back view camera assembly (A) after pressing the locking pin.
Fig 3: Pressing Locking Pin
G12143038Courtesy of KIA MOTORS AMERICA, INC.

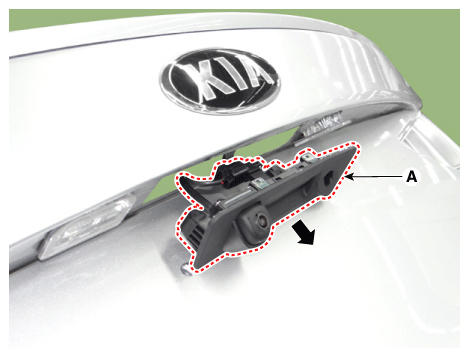

Fig 4: Removing Back View Camera Assembly
G12143039Courtesy of KIA MOTORS AMERICA, INC.
