LIN Communication Line Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF"
Refer to REMOVAL and remove necessary parts to get access to Rain Sensor connector.
Ignition "ON"
Back probe and measure signal waveform between Pin No. 2 (LIN) terminal of Rain Sensor harness connector and chassis ground.
Specification: Refer to Fig 1 below

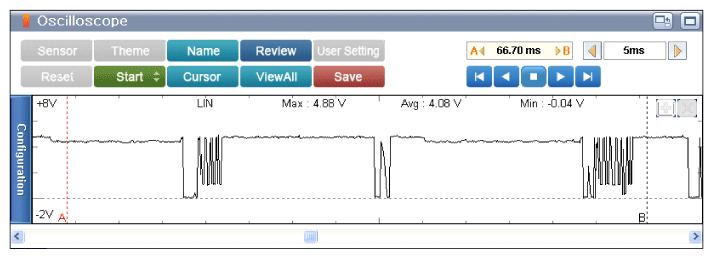

Fig 1: Screen Display - Normal LIN Communication Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured value within specification?
YES
- Go to "Component Inspection" procedure below.
NO
- If the voltage of measured signal waveform is the battery voltage level (about 12V),
  → Check for short to battery in the LIN line.

  → Check for open/poor connection in the LIN line.
- If the voltage of measured signal waveform is the ground voltage level (about 0V),
  → Check for short to ground the LIN line.
- Repair or replace as necessary, go to "Verification of Vehicle Repair " procedure.
