Section 123 (Body Control Module Diagnosis (Except HEV))
>>
DTC B1603-00: CAN Bus OFF (B-CAN)
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

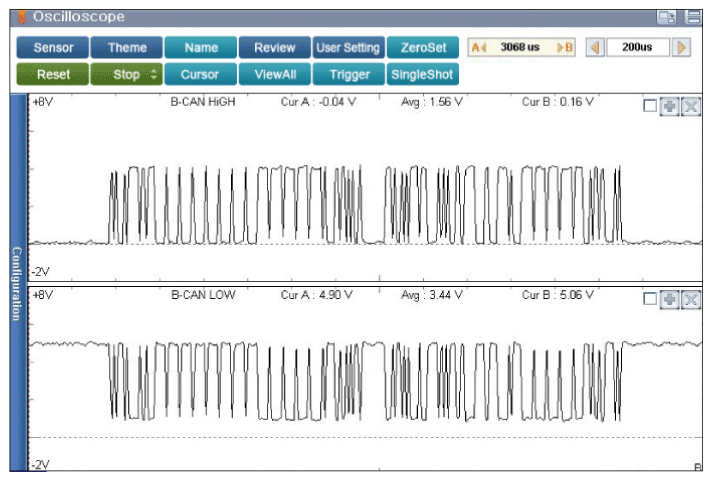

Fig 1: Screen Display - Normal B-CAN Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
