Section 12 (Charging System - 2.0L (Except HEV)): Battery: Troubleshooting

WARNING: This page is about a different variant/trim than selected.

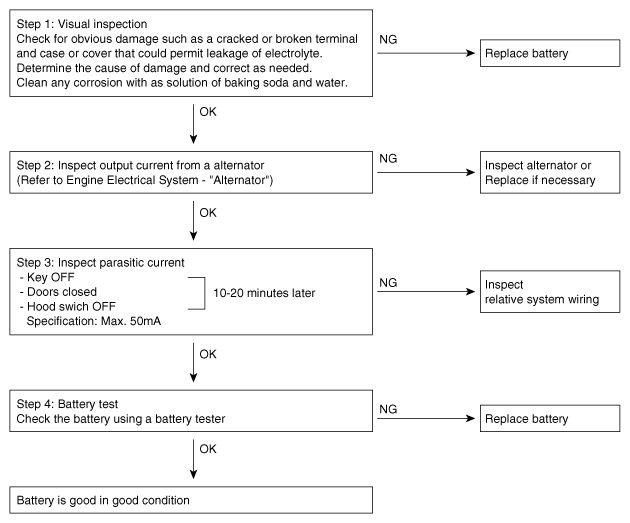

Fig 1: Battery Troubleshooting Flowchart
G12145553Courtesy of KIA MOTORS AMERICA, INC.
