Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

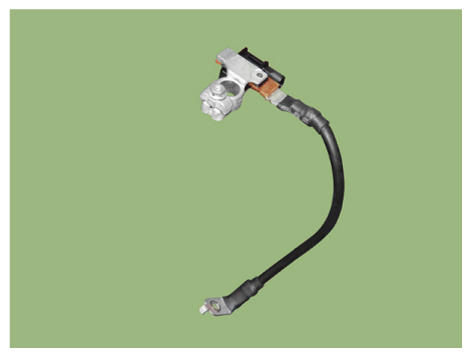

Fig 1: Battery Sensor

G12145555

Courtesy of KIA MOTORS AMERICA, INC.

Turn the ignition switch OFF.
Disconnect the battery negative (-) terminal (A).
Battery negative (-) terminal tightening nut:

4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.4 lb.ft)

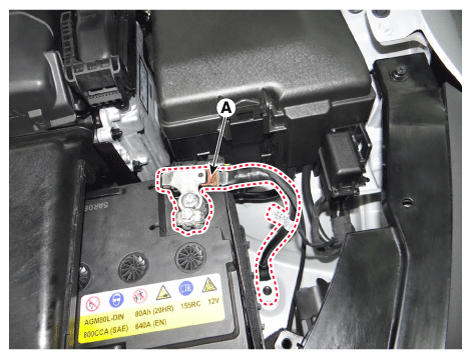

Fig 2: Disconnecting Battery Negative (-) Terminal
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the battery sensor connector (A).
Remove the battery sensor by loosening the mounting bolt (B).
Battery sensor cable flange mounting bolt (Chassis ground):

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

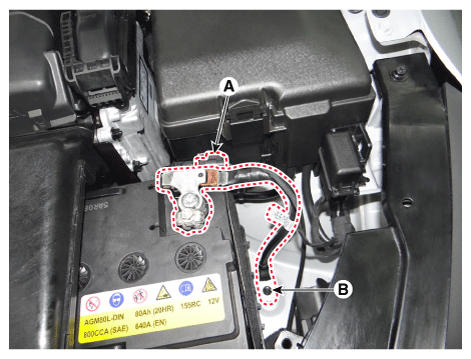

Fig 3: Disconnecting Battery Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
