Midrange Speaker (Crash Pad)

WARNING: This page is about a different variant/trim than selected.

CAUTION: Be careful not to scratch the crash pad and related parts.

Disconnect the negative (-) battery terminal.
Using a scraper or remover, remove the midrange speaker grille (A).

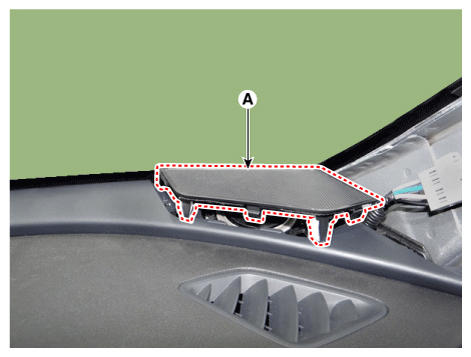

Fig 1: Locating Midrange Speaker Grille
Courtesy of KIA MOTORS AMERICA, INC.
Remove the midrange speaker (A) after loosening the mounting screws.

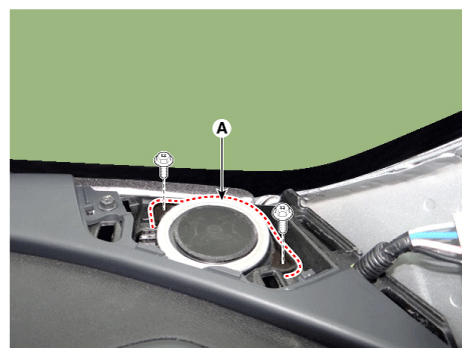

Fig 2: Locating Midrange Speaker With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the midrange speaker connector (A).

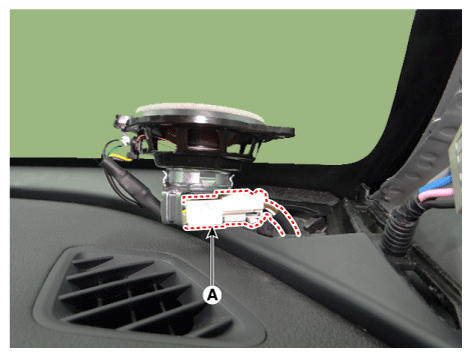

Fig 3: Locating Midrange Speaker Connector

Courtesy of KIA MOTORS AMERICA, INC.
