Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS).
The diagnostic system (KDS) provides the following information.
1. Self diagnosis: Checking failure and code number (DCT).
2. Current data: Checking the system input/output data state.
3. Actuation test: Checking the system operation condition.
4. Additional function: Controlling other features including system option setting and zero point adjustment
Select the "Car model" and the system to be checked in order to check the vehicle with the tester.
Select the "Current Data" menu to search the current state of the input/output data.
To forcibly actuate the input value of the module to be checked, select option "AMP Operation Test".

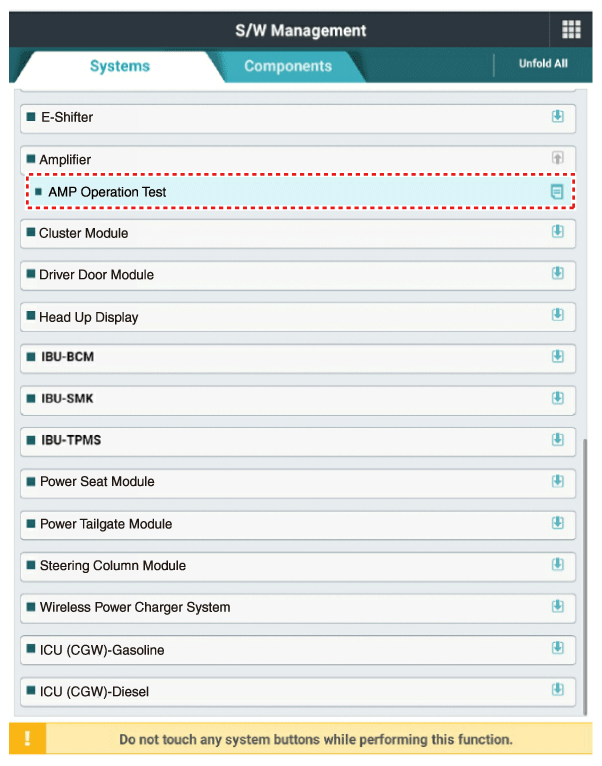

Fig 1: Scantool Display - AMP Operation Test

Courtesy of KIA MOTORS AMERICA, INC.

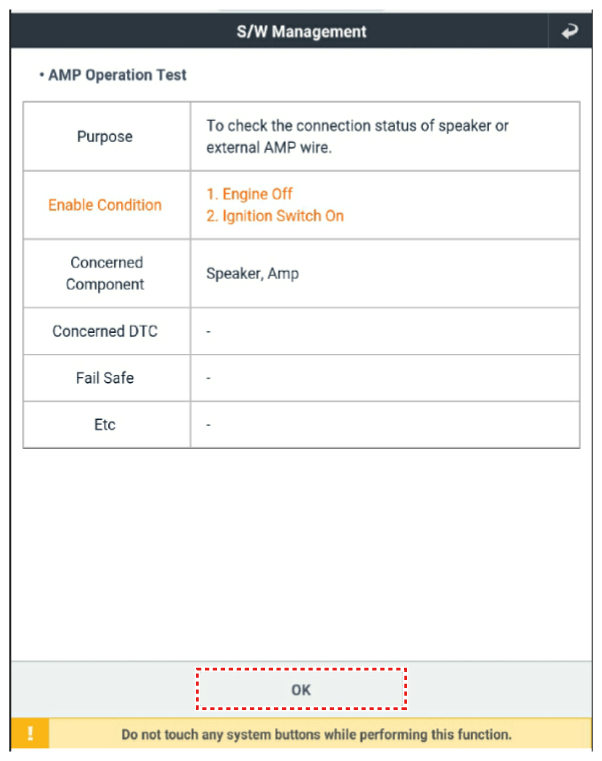

Fig 2: Scantool Display - Enable Condition

Courtesy of KIA MOTORS AMERICA, INC.

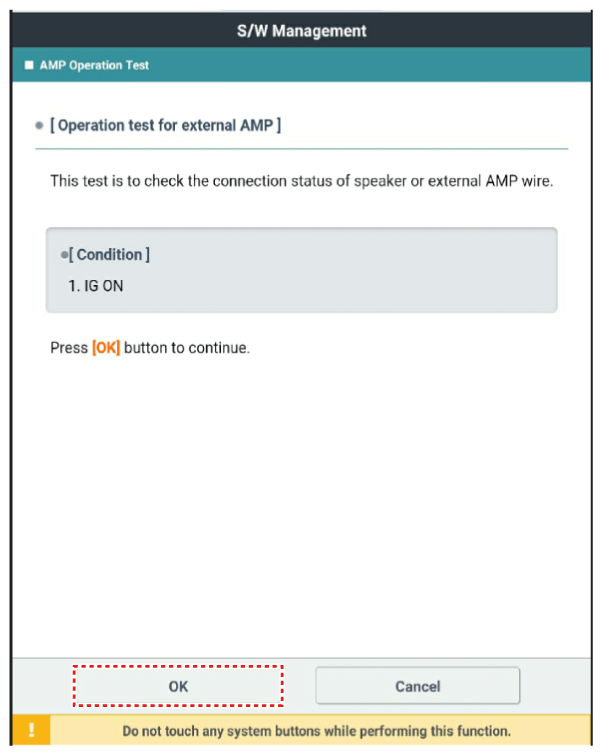

Fig 3: Scantool Display - Operation Test For External AMP

Courtesy of KIA MOTORS AMERICA, INC.
