System Block Diagram

WARNING: This page is about a different variant/trim than selected.

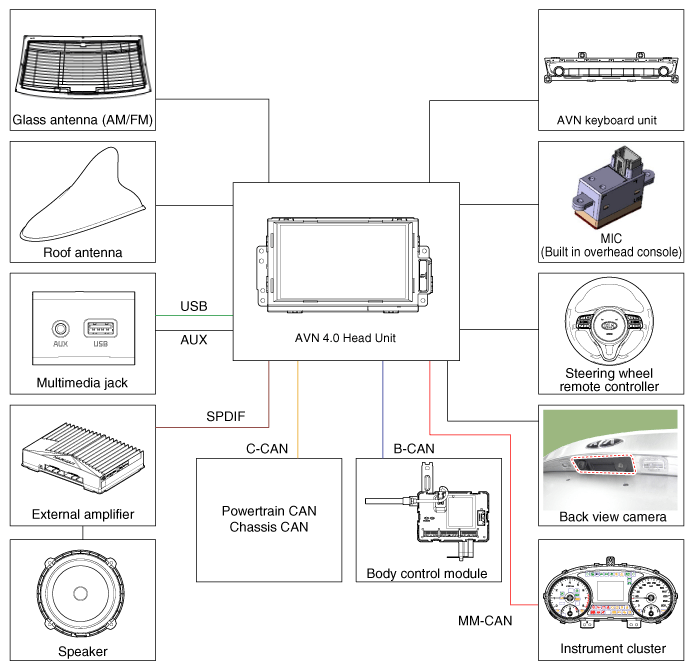

Fig 1: AVN System Block Diagram
G12142941Courtesy of KIA MOTORS AMERICA, INC.
