Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

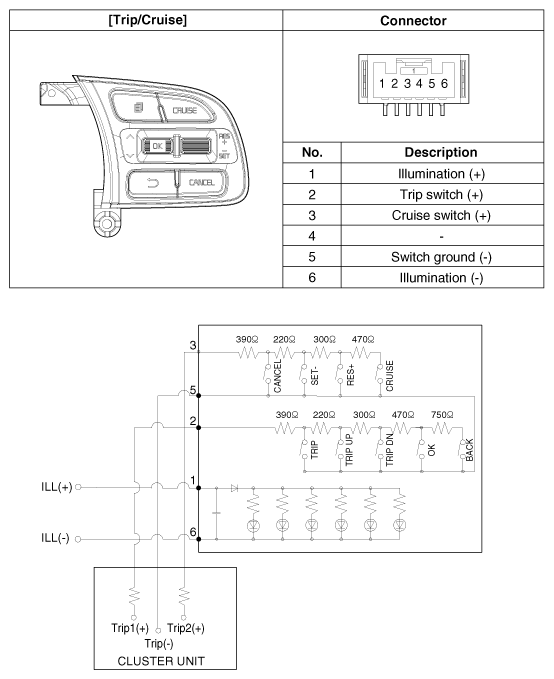

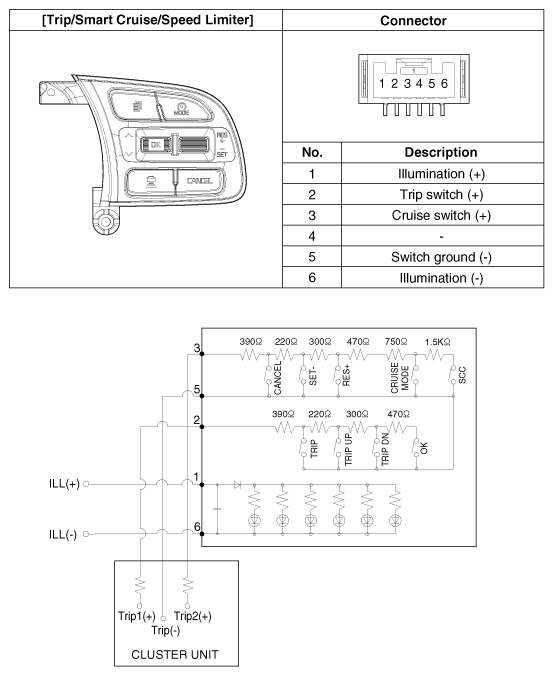

Fig 1: AVN Remote Controller Circuit (1 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

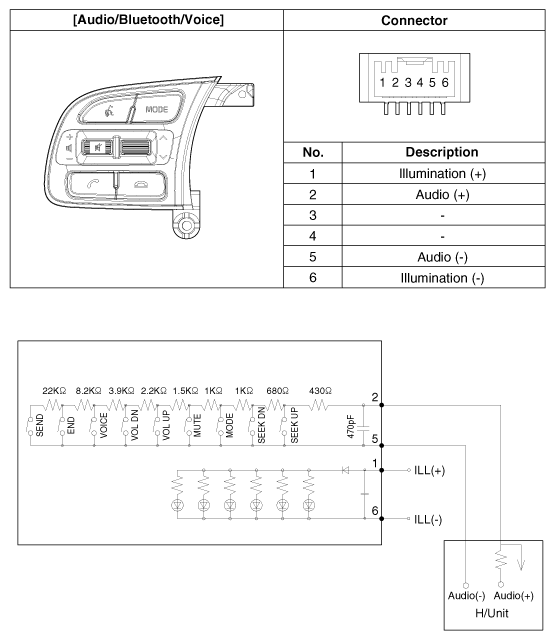

Fig 2: AVN Remote Controller Circuit (2 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

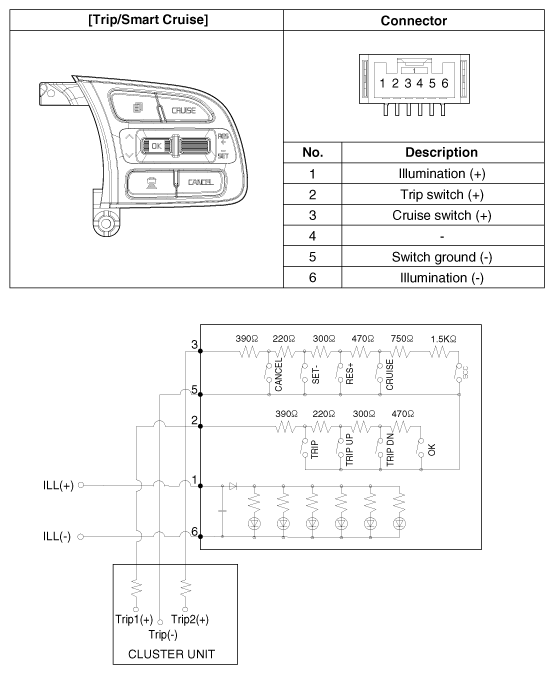

Fig 3: AVN Remote Controller Circuit (3 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

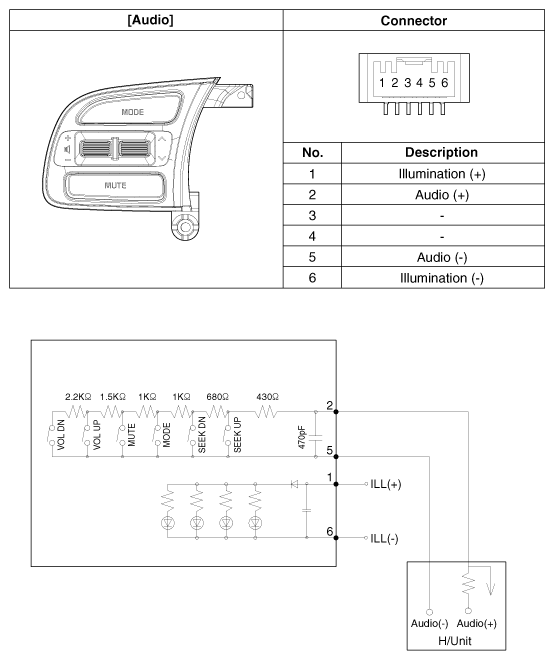

Fig 4: AVN Remote Controller Circuit (4 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

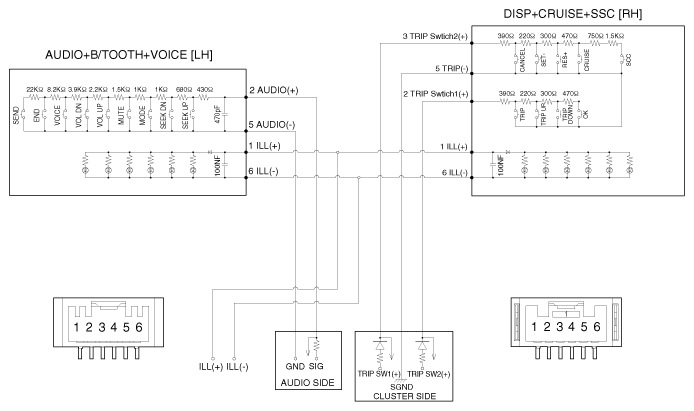

Fig 5: AVN Remote Controller Circuit (5 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

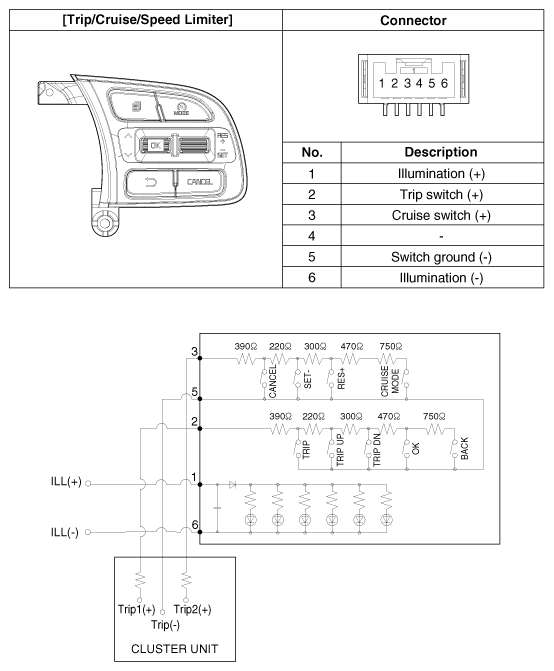

Fig 6: AVN Remote Controller Circuit (6 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

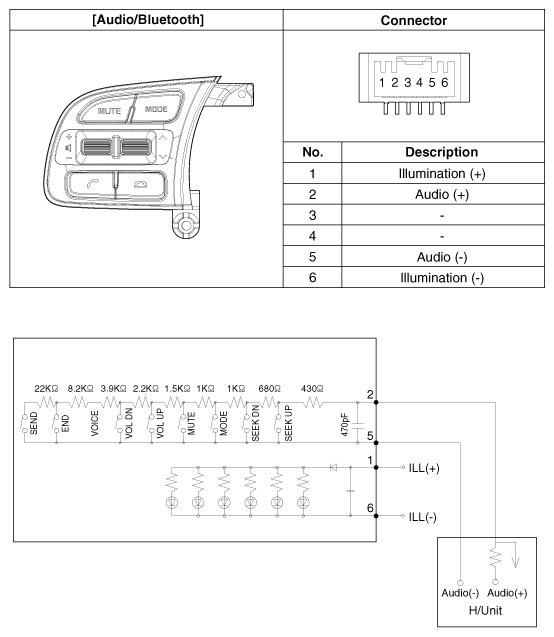

Fig 7: AVN Remote Controller Circuit (7 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

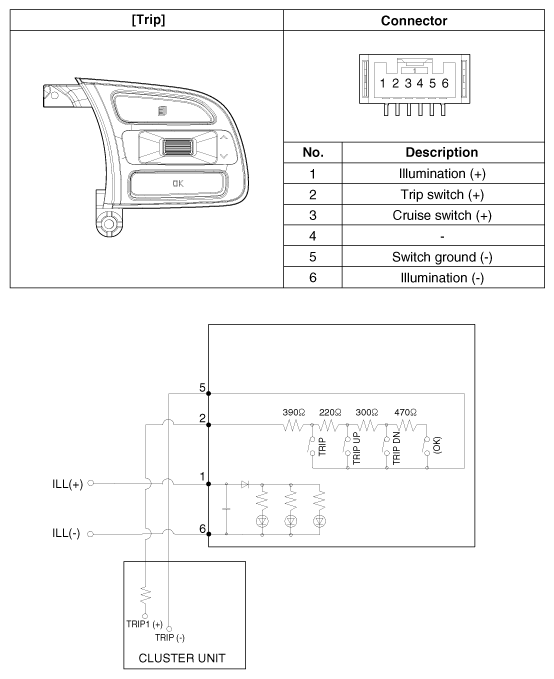

Fig 8: AVN Remote Controller Circuit (8 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: AVN Remote Controller Circuit (9 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.
