Repair Procedures: Removal

1. Disconnect the negative (-) battery terminal.

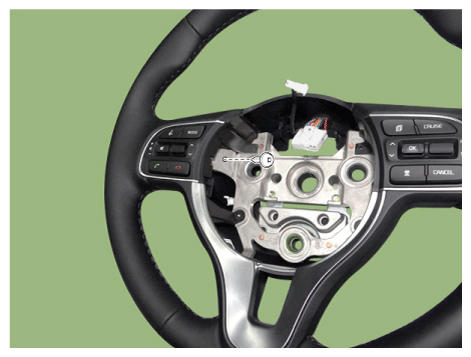

2. Remove the steering wheel assembly.

   (Refer to Steering System - "STEERING WHEEL ")

3. Remove the paddle shift switch (A) after loosening the mounting screws.

   [LH]

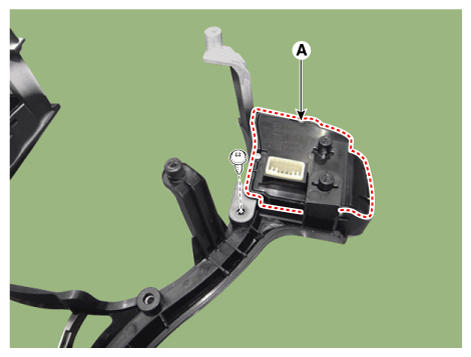

   Fig 1: Paddle Shift Switch Mounting Screws (LH)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Locating Paddle Shift Switch (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

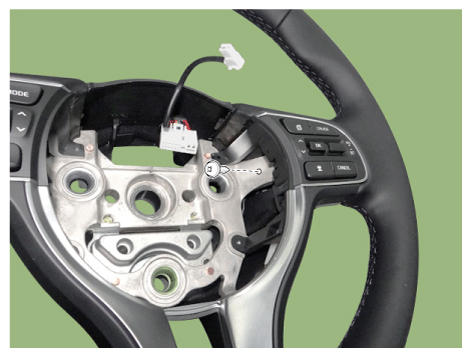

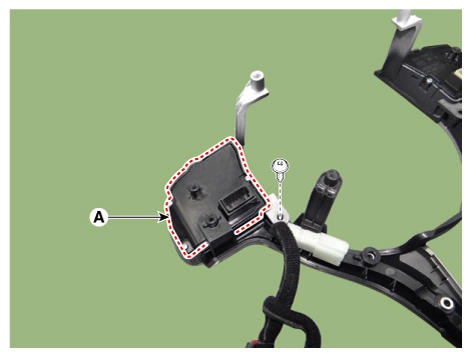

   Fig 3: Paddle Shift Switch Mounting Screws (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

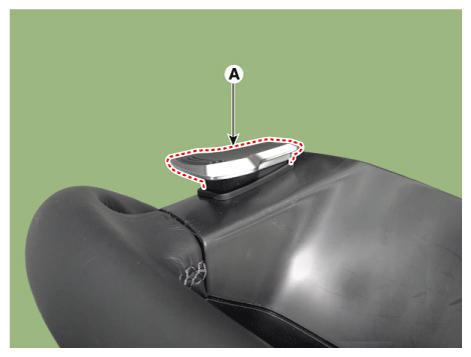

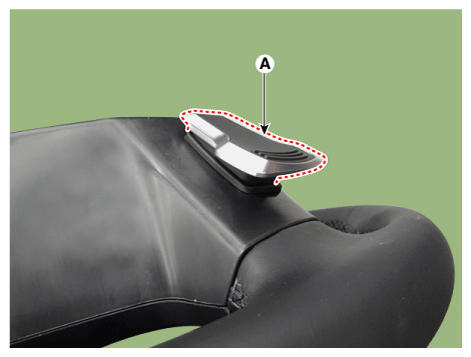

   Fig 4: Locating Paddle Shift Switch (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

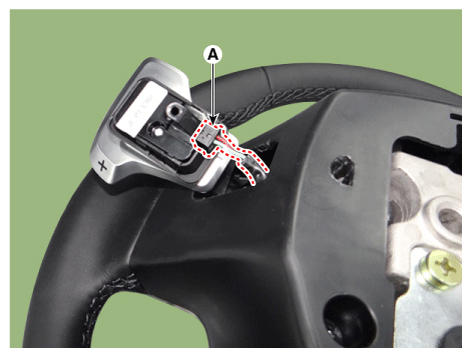

4. Disconnect the paddle shift switch connector (A).

   [LH]

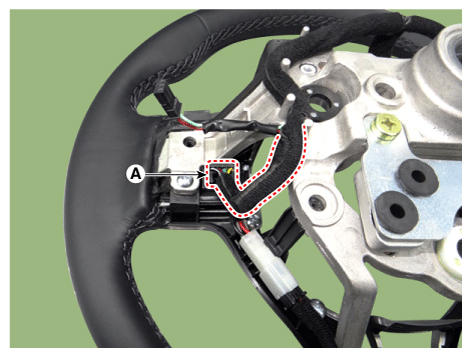

   Fig 5: Locating Paddle Shift Switch Connector (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

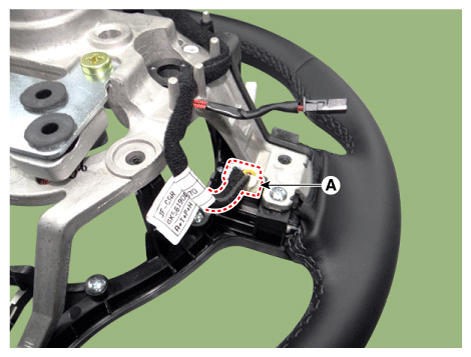

   Fig 6: Locating Paddle Shift Switch Connector (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Remove the screws from the steering back cover (A).

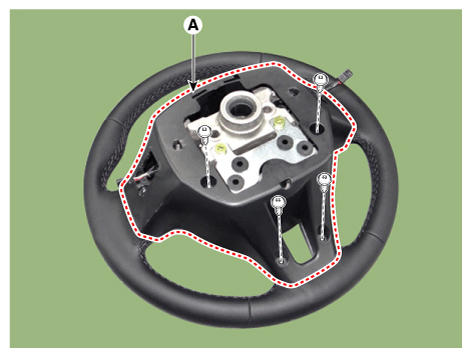

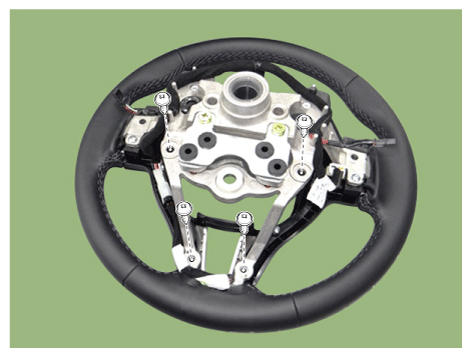

   Fig 7: Locating Steering Back Cover With Screws

   Courtesy of KIA MOTORS AMERICA, INC.
6. Disconnect the steering remote control connector (A).

   [LH]

   Fig 8: Locating Steering Remote Control Connector (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Fig 9: Locating Steering Remote Control Connector (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove the steering remote control assembly (A) after loosening the mounting screws.
   Fig 10: Steering Remote Control Assembly Mounting Screws

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 11: Locating Steering Remote Control Assembly

   Courtesy of KIA MOTORS AMERICA, INC.

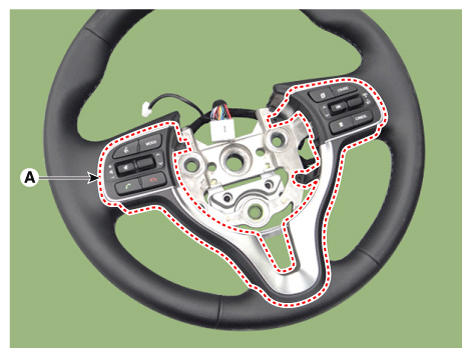

8. Remove the steering remote control (A) after loosening the mounting screws.

[LH]

Fig 12: Locating Steering Remote Control With Mounting Screws (LH)

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

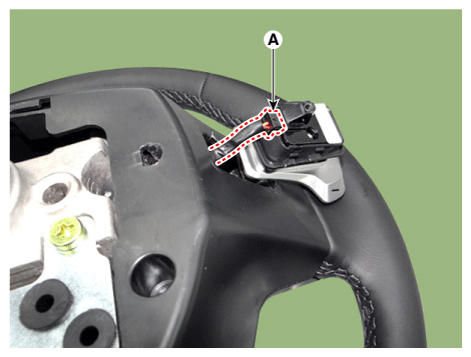

Fig 13: Locating Steering Remote Control With Mounting Screws (RH)

Courtesy of KIA MOTORS AMERICA, INC.
