Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.

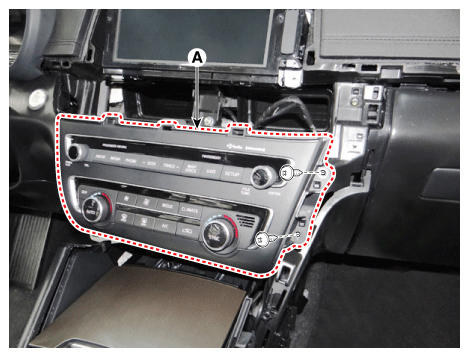

Remove the center fascia lower panel (A) after loosening the mounting screws.
(Refer to Body - "CENTER FASCIA PANEL ")

Fig 1: Locating Center Fascia Lower Panel With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center fascia lower panel after disconnecting the connectors (A).

Fig 2: Locating Center Fascia Lower Panel Connectors
Courtesy of KIA MOTORS AMERICA, INC.

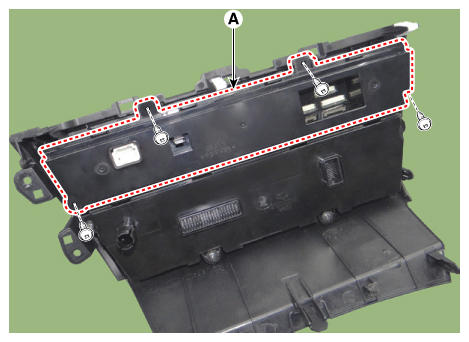

Remove the AVN keyboard unit (A) after loosening the mounting screws.

Fig 3: Locating AVN Keyboard Unit With Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
