Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

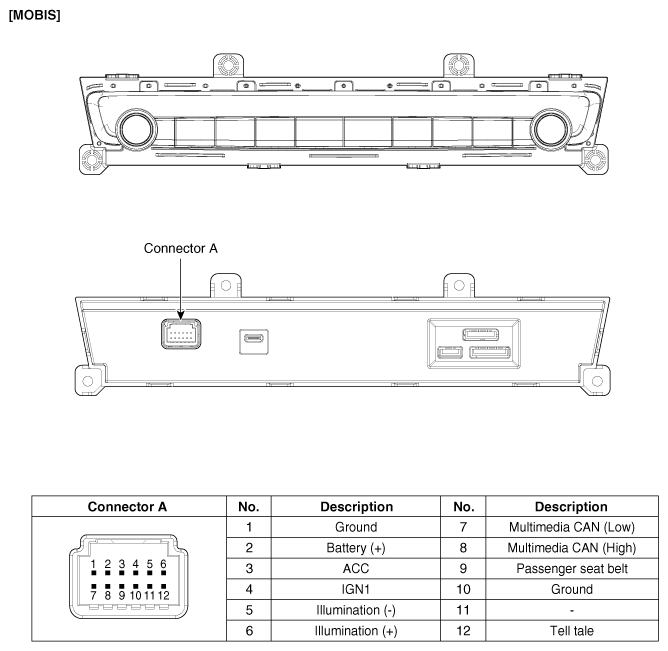

Fig 1: Locating AVN Keyboard Connector Terminals
G12142952Courtesy of KIA MOTORS AMERICA, INC.
