Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Be careful not to scratch the center fascia upper panel and related parts.
  • Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
  • Take caution when keeping and handling during disassembly/assembly as it is easily contaminated by lubricant and oil.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia upper panel.

    (Refer to Body - "CENTER FASCIA PANEL ")

  3. Remove the AVN head unit (A) after loosening the mounting screws.

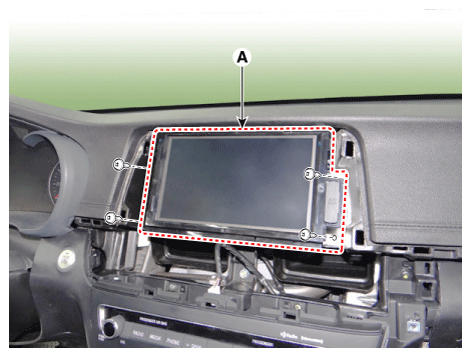

    Fig 1: Locating AVN Head Unit With Mounting Screws
    G12142944Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the AVN head unit after disconnecting the connectors and antenna cable (A).

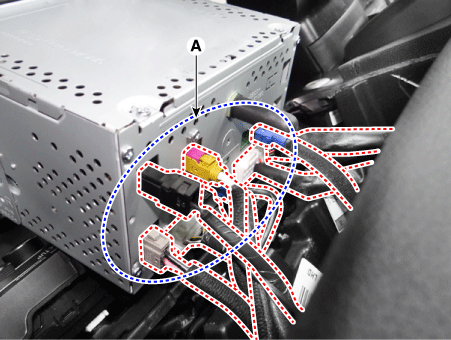

Fig 2: Locating Connectors And Antenna Cable
G12142945Courtesy of KIA MOTORS AMERICA, INC.
