Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

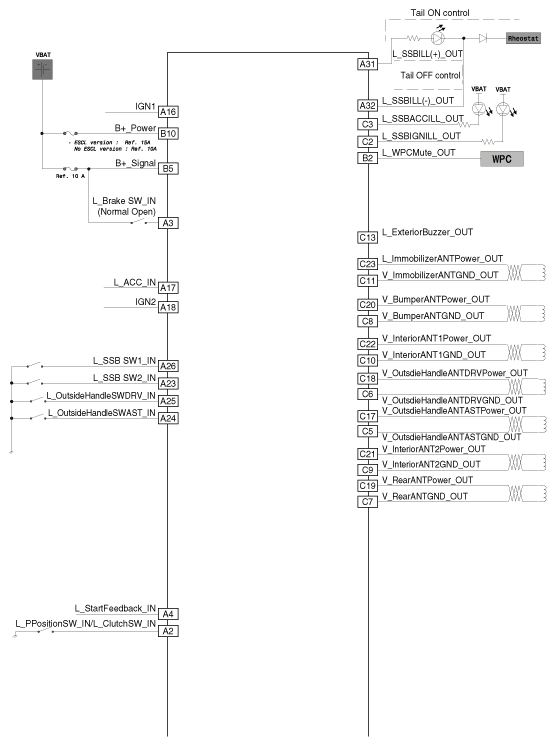

Fig 1: Smart Key Unit Circuit (1 Of 2)
G12144777Courtesy of KIA MOTORS AMERICA, INC.

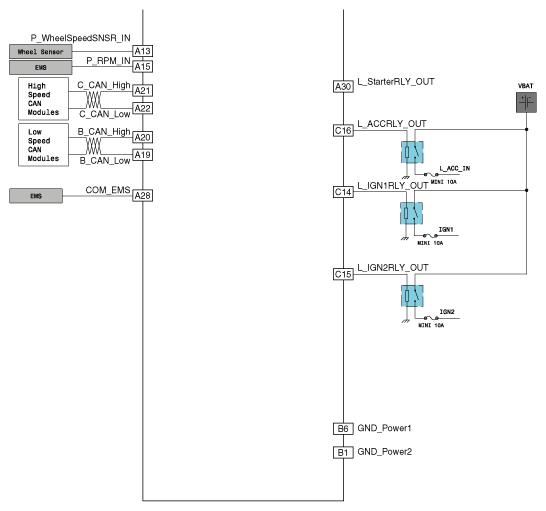

Fig 2: Smart Key Unit Circuit (2 Of 2)
G12144778Courtesy of KIA MOTORS AMERICA, INC.
