Trunk Antenna

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "TRUNK TRIM (EXCEPT HEV) ")

  3. Remove the trunk antenna (B) after disconnect the connector (A) and loosening the mounting nuts.

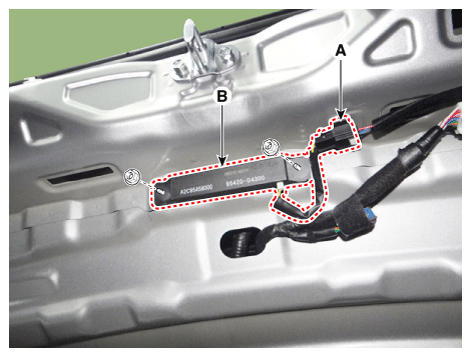

Fig 1: Locating Trunk Antenna And Connector With Mounting Nuts
G12144784Courtesy of KIA MOTORS AMERICA, INC.
