Smart Key Unit

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

  3. Remove the smart key unit (A) after loosening the bolt and screw.

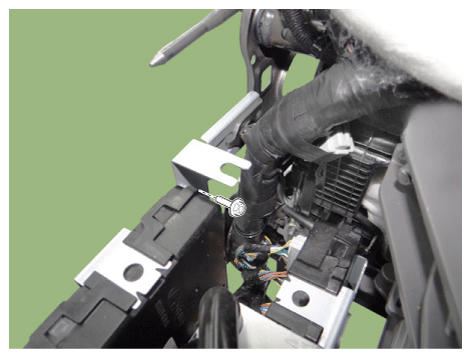

    Fig 1: Smart Key Unit Bolt And Screw
    G12144779Courtesy of KIA MOTORS AMERICA, INC.

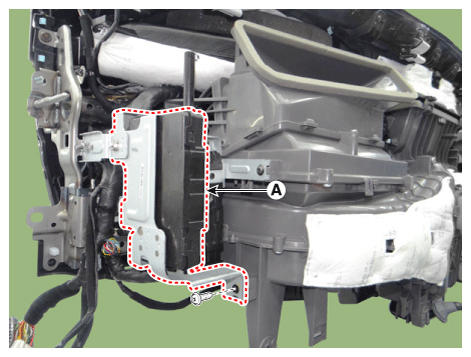

    Fig 2: Locating Smart Key Unit
    G12144780Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the smart key unit connectors (A).

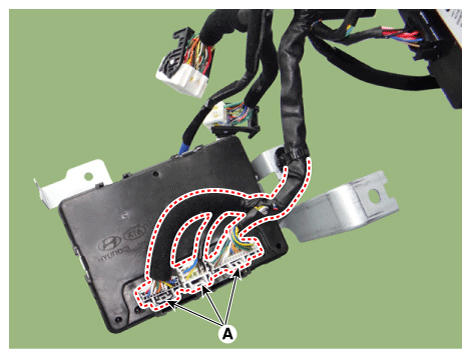

Fig 3: Locating Smart Key Unit Connectors
G12144781Courtesy of KIA MOTORS AMERICA, INC.
