Interior 1 Antenna

WARNING: This page is about a different variant/trim than selected.
NOTE: Be careful not to scratch the crash pad and related parts.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia lower panel.

    (Refer to Body - "CENTER FASCIA PANEL ")

  3. Remove the interior 1 antenna (B) after loosening the mounting screws and disconnecting the connector (A).

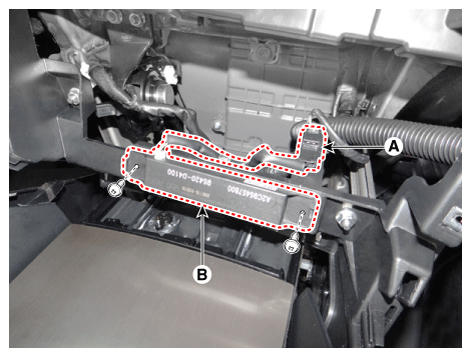

Fig 1: Locating Interior 1 Antenna And Connector
G12144782Courtesy of KIA MOTORS AMERICA, INC.
