Door Outside Handle

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door outside handle.

    (Refer to Body - "FRONT DOOR OUTSIDE HANDLE ")

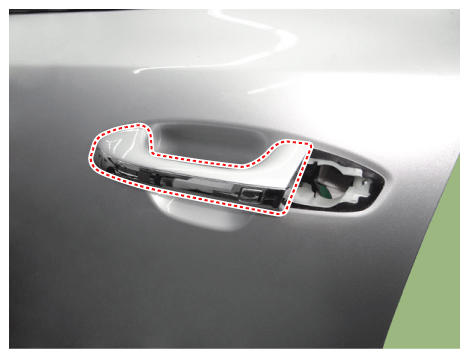

Fig 1: Front Door Outside Handle
G12144787Courtesy of KIA MOTORS AMERICA, INC.

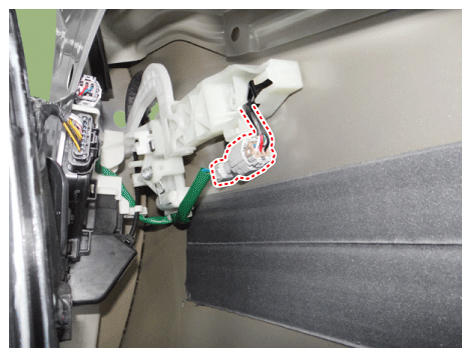

Fig 2: Front Door Outside Handle Connector
G12144788Courtesy of KIA MOTORS AMERICA, INC.
