Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. After ignition "ON", select the "SMK STATUS INFO".

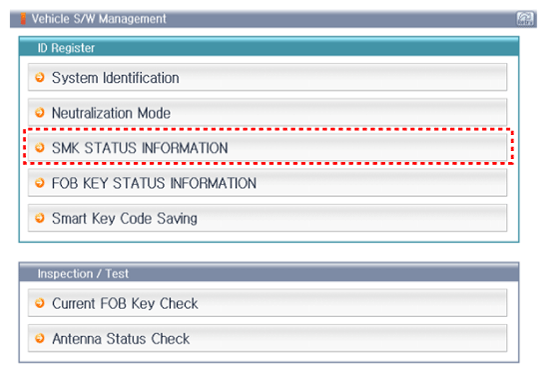

Fig 1: Scantool Display - Vehicle S/W Management
G12144807Courtesy of KIA MOTORS AMERICA, INC.

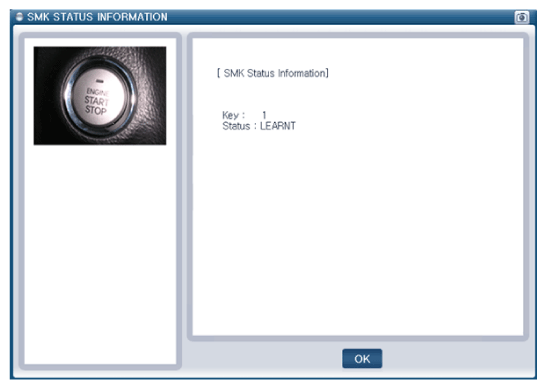

Fig 2: Scantool Display - SMK Status Information
G12144808Courtesy of KIA MOTORS AMERICA, INC.
