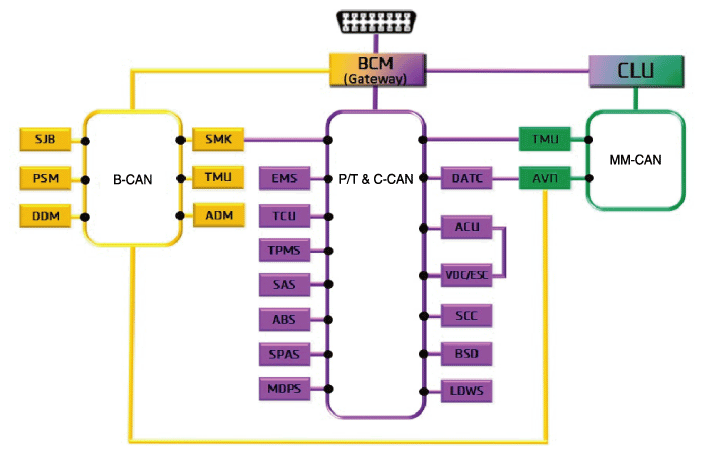

Communication Network Diagram
WARNING: This page is about a different variant/trim than selected.
| Abbreviation | Explanation |
|---|---|
| ACU | Airbag Control Unit |
| ADM | Assist Door Module |
| B_CAN | Body Controller Area Network |
| BCM | Body Control Module |
| BSD | Blind Spot Detection |
| C_CAN | Chassis Controller Area Network |
| CLU | Cluster Module |
| DATC | Dual Automatic Temp Control |
| DDM | Driver Door Module |
| ESC | Electronic Stability Program |
| EMS | Engine Management System |
| LDWS | Lane Departure Warning System |
| M_CAN | Multimedia Controller Area Network |
| MDPS | Motor Driven Power Steering |
| P_CAN | Powertrain Controller Area Network |
| PSM | Power Seat Module |
| SAS | Steering Angle Sensor |
| SJB | Smart Junction Block |
| SMK | Smart Key Unit |
| SPAS | Smart Parking Assist System |
| TCU | Transmission Control Unit |
| TPMS | Tire Pressure Monitoring System |
| VDC | Vehicle Dynamic Control |
| TMU | Telematics System |
| ABS | Anti-lock Brake System |
| SCC | Smart Cruise Control |
