Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  3. Remove the steering column upper and lower shrouds after loosening the screws.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

  4. Remove the clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  5. Disconnect the multifunction switch connector (A).

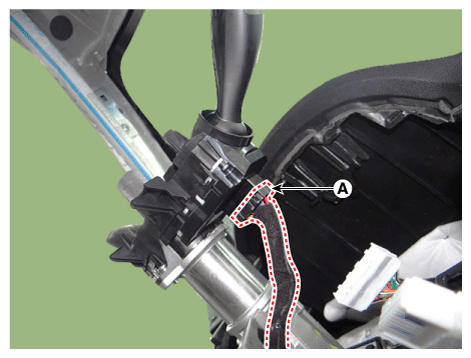

    Fig 1: Disconnecting Multifunction Switch Connector
    G12144854Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the multifunction switch assembly (A) after loosening the screws.

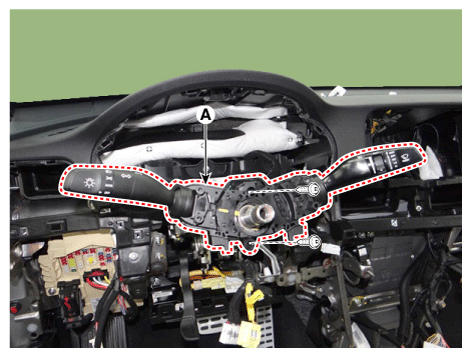

Fig 2: Removing Multifunction Switch Assembly Screws
G12144855Courtesy of KIA MOTORS AMERICA, INC.
