Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the connector from the wiper motor.

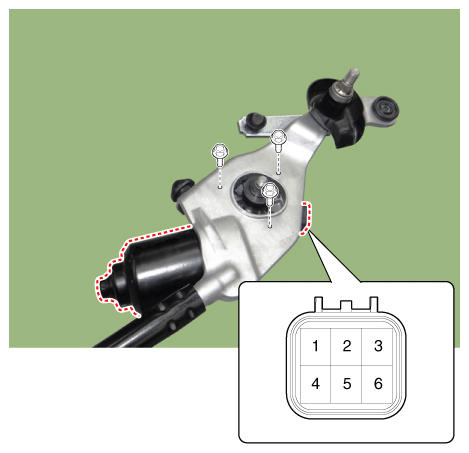

    Fig 1: Removing Connector From Wiper Motor
    G12144868Courtesy of KIA MOTORS AMERICA, INC.
  2. Attach the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5.
No. Description
1 -
2 -
3 battery
4 High speed
5 GND
6 Low speed

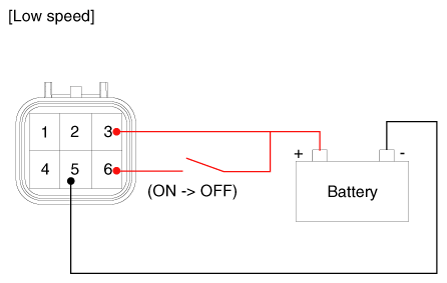

Fig 2: Attaching Positive (+) Lead From Battery To Terminal 3 And Negative (-) Lead To Terminal 5 (1 Of 2)
G12144869Courtesy of KIA MOTORS AMERICA, INC.

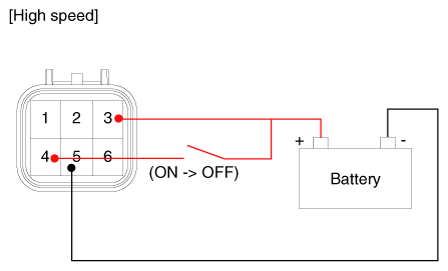

Fig 3: Attaching Positive (+) Lead From Battery To Terminal 3 And Negative (-) Lead To Terminal 5 (2 Of 2)
G12144870Courtesy of KIA MOTORS AMERICA, INC.
