Electrical System

WARNING: This page is about a different variant/trim than selected.
  1. Be sure to disconnect the battery cable from the negative (-) terminal of the battery.
  2. Never pull on the wires when disconnecting connectors.
  3. Locking connectors will click when the connector is secure.
  4. Handle sensors and relays carefully. Be careful not to drop them against other parts.

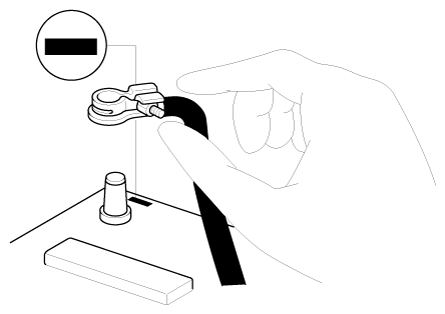

Fig 1: Disconnecting Battery Cable From Negative (-) Terminal Of Battery
G12139411Courtesy of KIA MOTORS AMERICA, INC.
