Component Inspection: Notes
- Ignition "OFF"
- Connect KDS/GDS to Data Link Connector (DLC).
- Ignition "ON" & Engine "ON"
- Monitor following parameters in "Current Data
" with KDS/GDS.

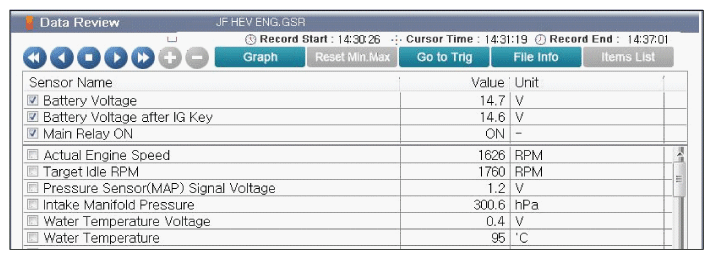

Specification: Refer to Figure below
- Is the battery voltage within specification?
YES
- Go to "Main Relay Actuation Test" procedure below.
NO
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
