Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.

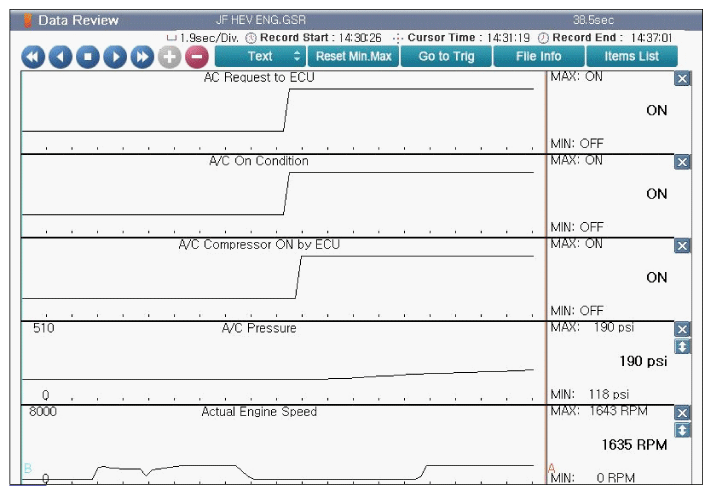

  3. Check the "Current Data  " about related DTC with KDS/GDS.
    G12357066Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
