Check A/C Pressure Transducer

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.

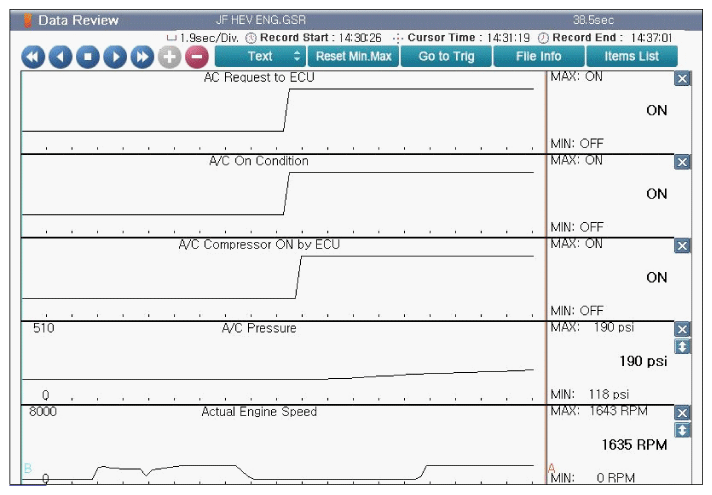

  3. Check the "Current Data  " about related DTC with KDS/GDS.
    G12357068Courtesy of KIA MOTORS AMERICA, INC.
  4. Does the A/C pressure transducer operate properly? (Check variation)

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If no problems were found with the circuits or connectors, replace the A/C pressure transducer and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
