Vehicle S/W Management

  1. Ignition "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS/GDS.

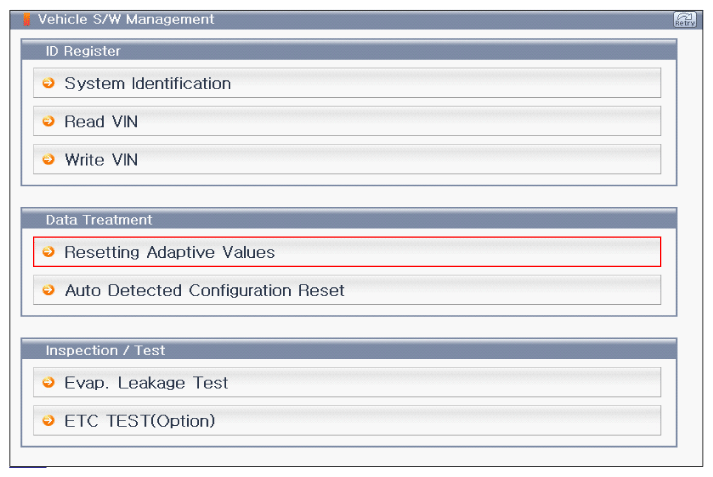

    G12357060Courtesy of KIA MOTORS AMERICA, INC.

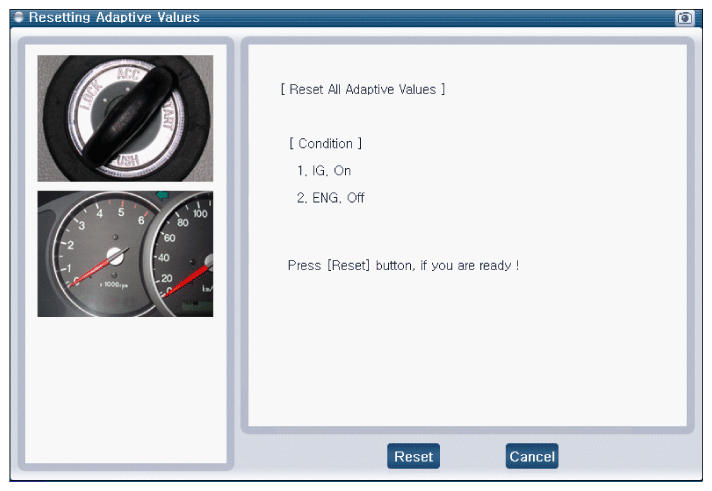

    G12357061Courtesy of KIA MOTORS AMERICA, INC.

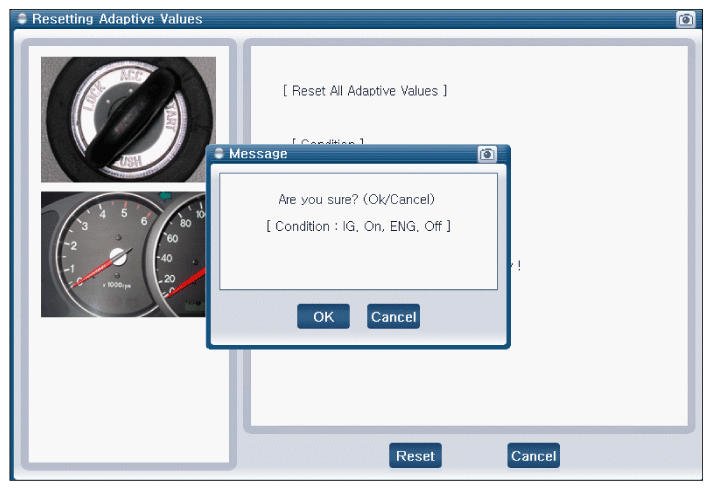

    G12357062Courtesy of KIA MOTORS AMERICA, INC.
    G12357063Courtesy of KIA MOTORS AMERICA, INC.
