PCSV Actuation Test: Notes
- Connect KDS/GDS to Data Link Connector (DLC).
- Ignition "ON" & Engine "OFF"
- Perform "Canister Purge Valve" in "Actuation Test " with KDS/GDS.
- Monitor "Canister Control Valve" parameter in "Current Data
" with KDS/GDS.

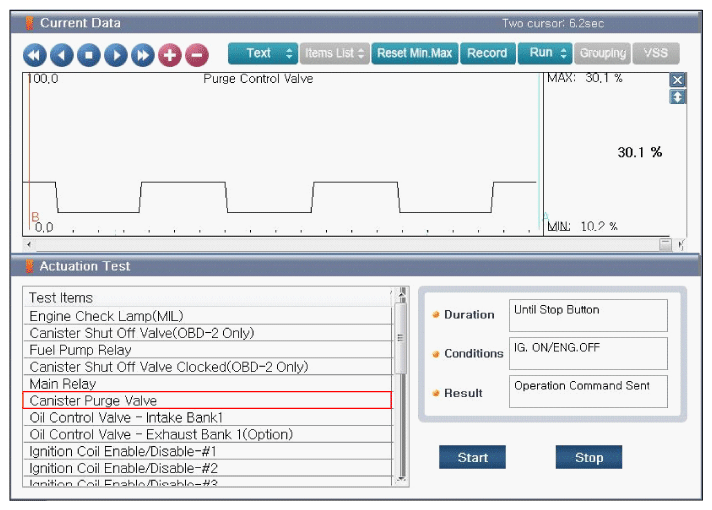

Specification: Refer to Figure below
- Is the parameter displayed within specification?
YES
- Go to "Canister Inspection" procedure below.
NO
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
