Vehicle S/W Management

  1. Ignition "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "OFF"

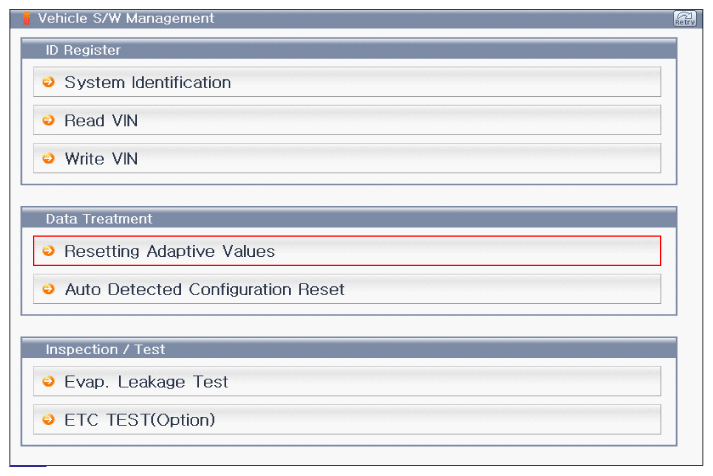

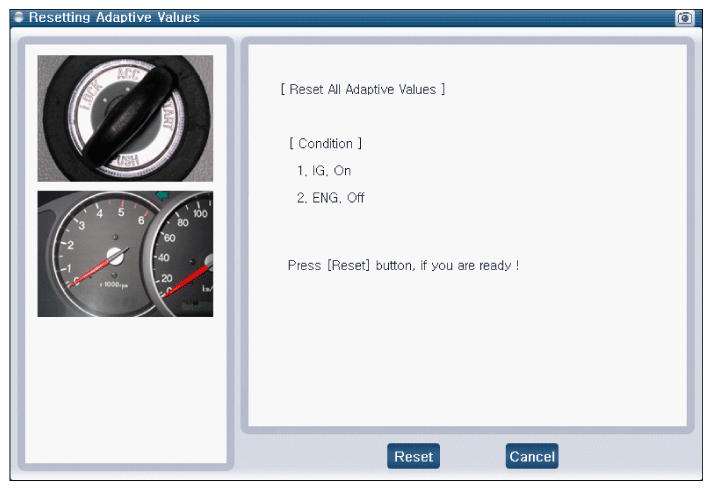

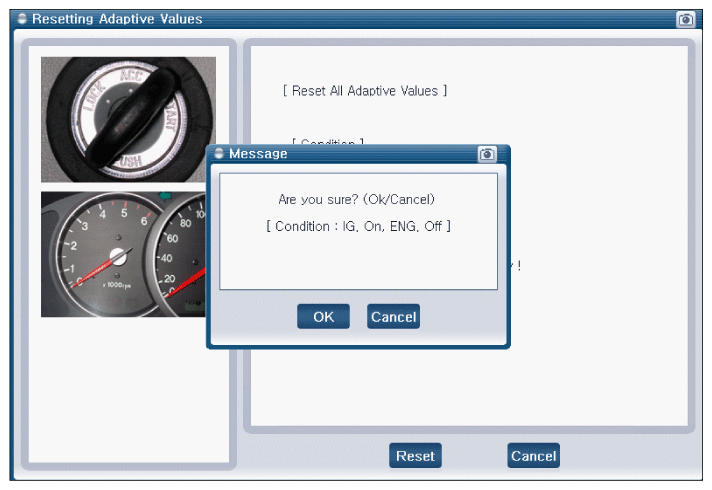

  4. Select the "Vehicle S/W Management" about related DTC with KDS/GDS.
    G12356998Courtesy of KIA MOTORS AMERICA, INC.
    G12356999Courtesy of KIA MOTORS AMERICA, INC.
    G12357000Courtesy of KIA MOTORS AMERICA, INC.
    G12357001Courtesy of KIA MOTORS AMERICA, INC.
