Monitor DTC Status

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON".

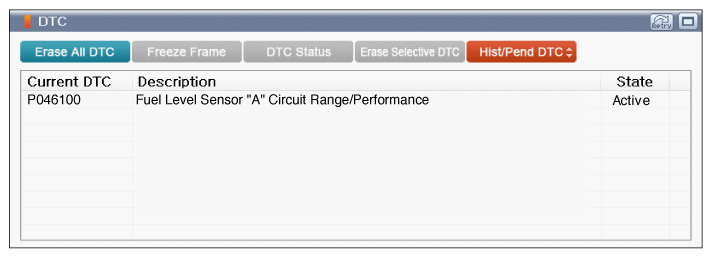

  3. Monitor "Diagnostic Trouble Codes (DTC)  " with KDS/GDS.
    G12356960Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    • Go to "Monitor KDS/GDS Data" procedure below.

    NO
