Perform Fuel Pump Relay Actuation Test

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON" and Engine "OFF".

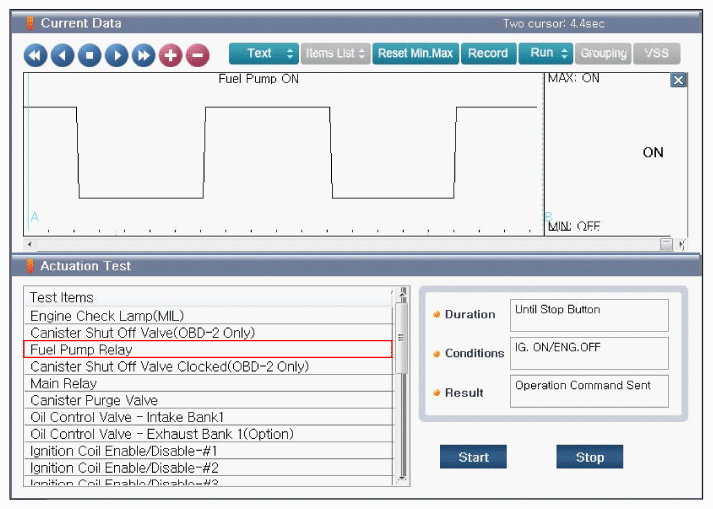

  3. Perform "Actuation Test" for "Fuel Pump Relay".
G12367459Courtesy of KIA MOTORS AMERICA, INC.
