Intake OCV Actuation Test

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "OFF"
Perform "Oil Control Valve - Intake Bank 1" in "Actuation Test " with KDS/GDS.
Monitor "OCV Holding Pulse Width-Inlet CVVT" parameter in "Current Data " with KDS/GDS.

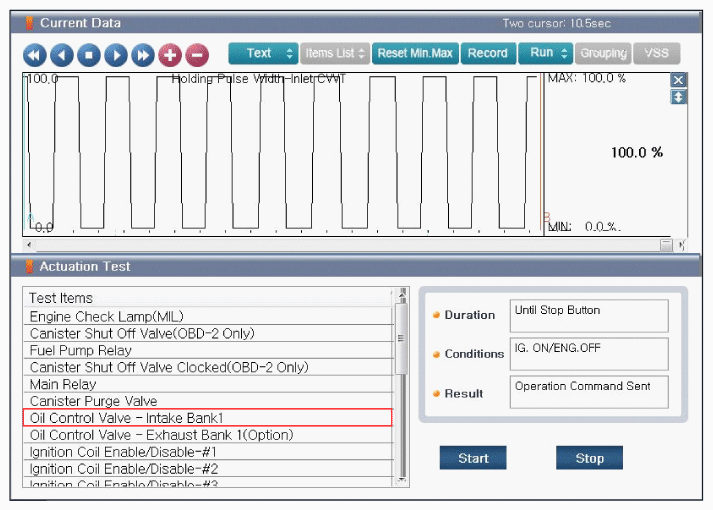

Specification: Refer to Figure below (Also, operating sound (Clicking sound) is heard)

Courtesy of KIA MOTORS AMERICA, INC.
Is parameter displayed within specification?
YES
- Go to "CVVT Assembly Inspection" procedure below.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace Intake OCV and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped or mis-treated.
- Apply engine oil to the valve O-ring before re-installing.
