Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

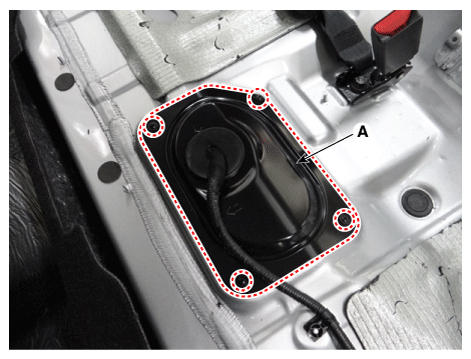

  3. Remove the fuel pump service cover (A) in the trunk.
    G12347363Courtesy of KIA MOTORS AMERICA, INC.

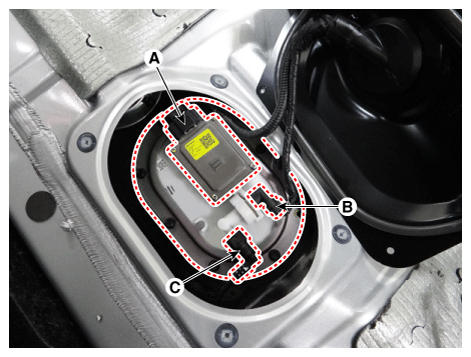

  4. Disconnect the fuel feed tube quick-connector (A).
  5. Disconnect the fuel pressure sensor connector (B).
  6. Disconnect the fuel pump control module (C).
    G12347364Courtesy of KIA MOTORS AMERICA, INC.
  7. Lift the vehicle.
  8. Remove the rear muffer.

    (Refer to Engine Mechanical System - "MUFFLER ")

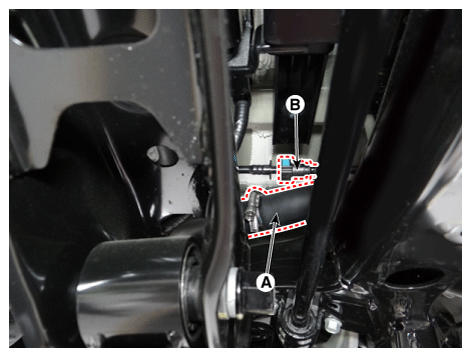

  9. Disconnect the fuel filler hose (A) and leveling tube (B).
    G12347365Courtesy of KIA MOTORS AMERICA, INC.

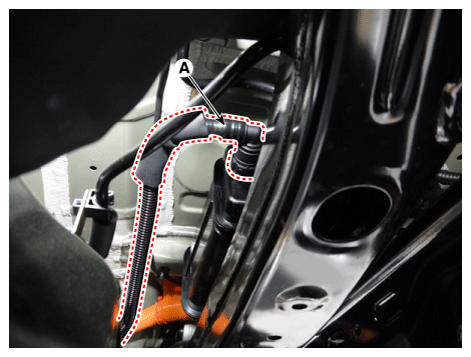

  10. Disconnect the vapor hose quick-connector (A).
    G12347366Courtesy of KIA MOTORS AMERICA, INC.

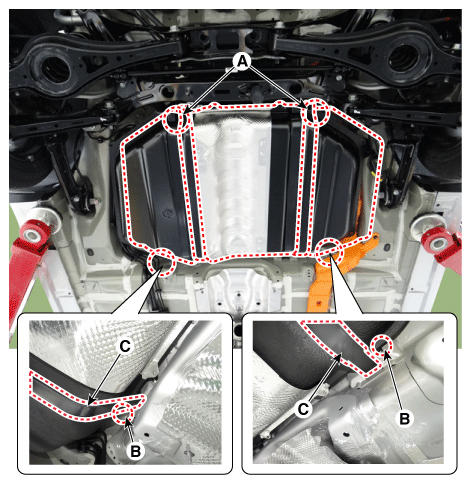

  11. After loosening the rear side fuel tank band mounting nut (A), remove the fuel tank band (C) from the gap (B) between front side fuel tank and body.

    Fuel tank band mounting nut:

    39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

    G12347367Courtesy of KIA MOTORS AMERICA, INC.

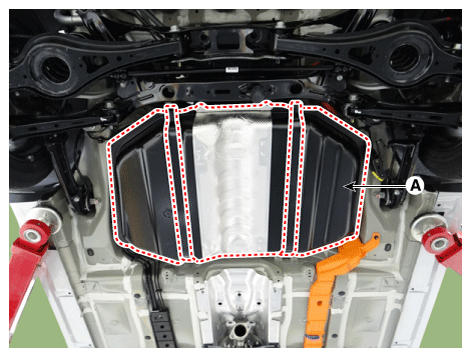

  12. Remove the fuel tank (A).
G12347368Courtesy of KIA MOTORS AMERICA, INC.
