Repair Procedures: Removal

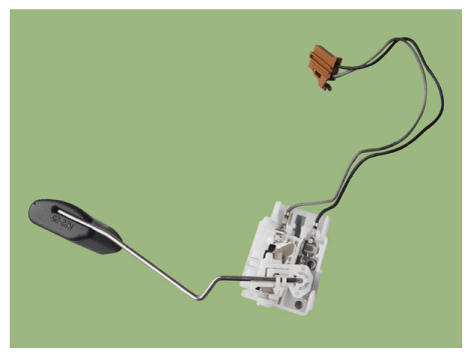

G12347389Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Disconnect the fuel sender connector (A).

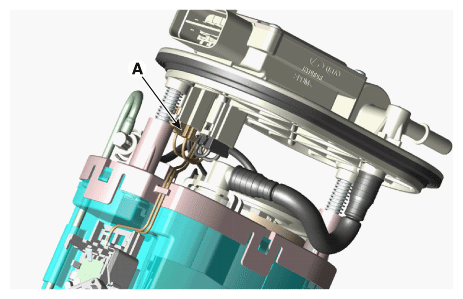

    G12347390Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the fuel sender (A) after releasing the fix hook.

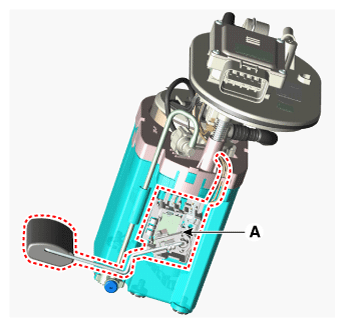

G12347391Courtesy of KIA MOTORS AMERICA, INC.
