Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

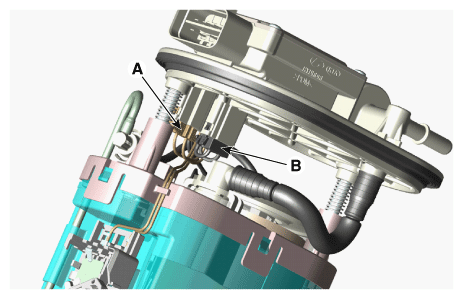

  2. Remove the fuel pump motor connector (A) and fuel sender connector (B).
    G12347382Courtesy of KIA MOTORS AMERICA, INC.

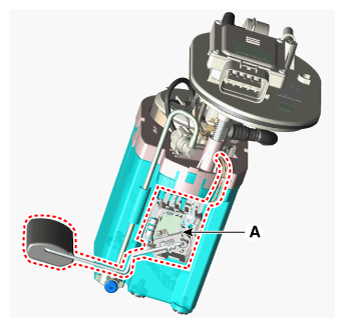

  3. Lift the fixing hook by using a common driver, and then remove the fuel sender (A).
    G12347383Courtesy of KIA MOTORS AMERICA, INC.

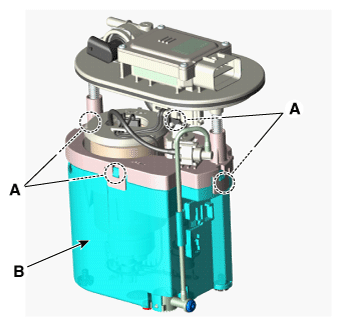

  4. Remove the reservoir cup (B) after releasing the fixing hooks (A).
    G12347384Courtesy of KIA MOTORS AMERICA, INC.

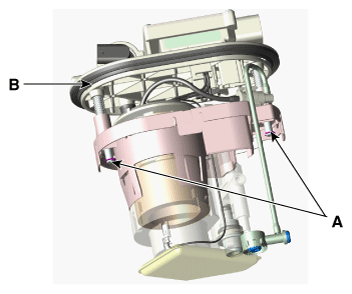

  5. Remove the head assembly (B) after releasing the fixing hooks (A).
    G12347385Courtesy of KIA MOTORS AMERICA, INC.

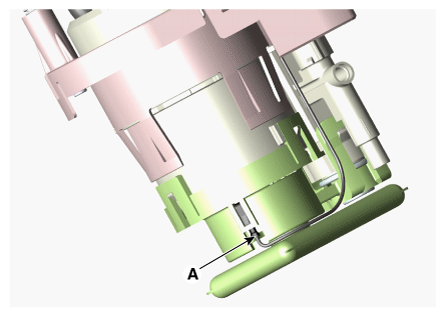

  6. Disconnect the ground cable (A).
    G12347386Courtesy of KIA MOTORS AMERICA, INC.

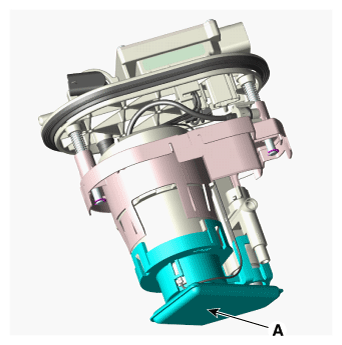

  7. Remove the free-filter (A) after releasing the fixing hooks.
    G12347387Courtesy of KIA MOTORS AMERICA, INC.

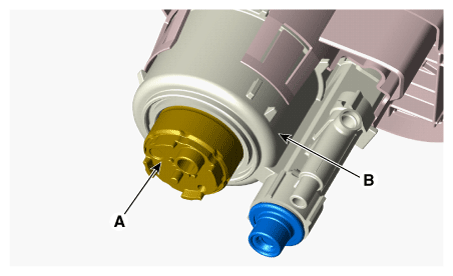

  8. Remove the fuel pump motor (A) from the fuel filter (B).
G12347388Courtesy of KIA MOTORS AMERICA, INC.
