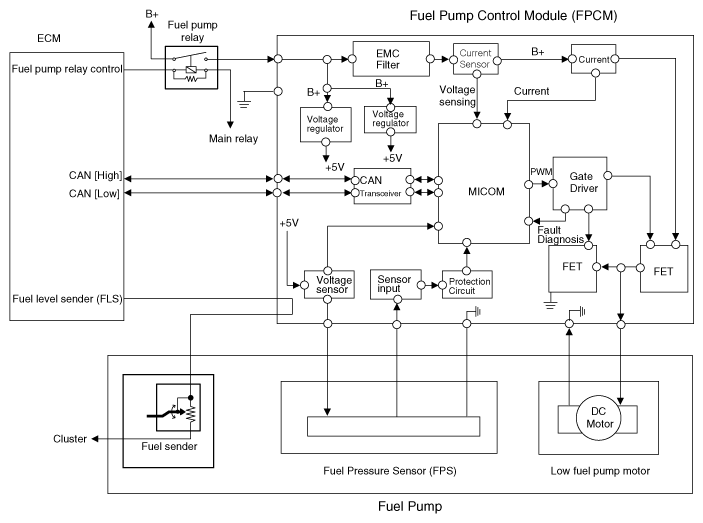

Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System (PHEV) >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
