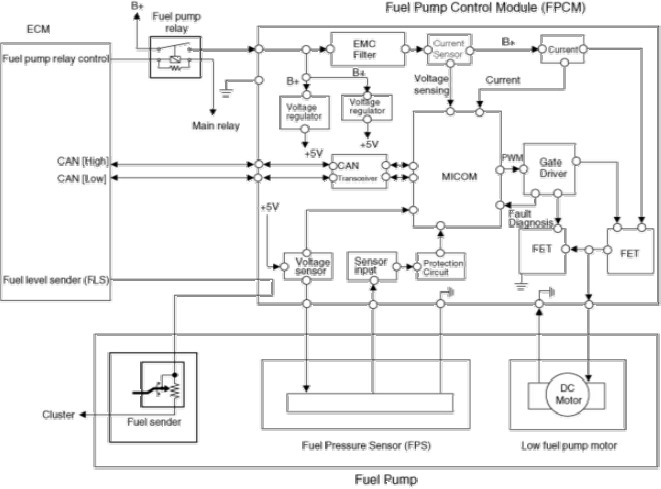

Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System (PHEV) >> Fuel Pressure Sensor (FPS) >> Schematic Diagrams >> Circuit Diagram >> Notes
