Repair Procedures: Replacement

  1. Remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

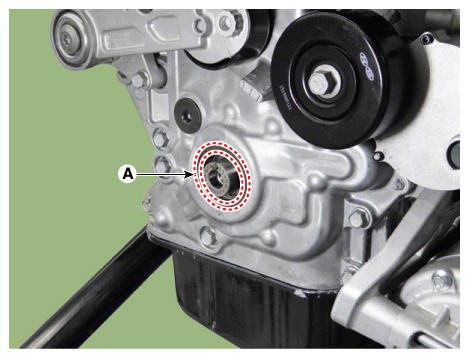

  2. Remove the front oil seal (A).
    G12353049Courtesy of KIA MOTORS AMERICA, INC.
  3. Apply engine oil to a new oil seal lip & outer surface.
    NOTE: Remove any debris from the lip portion of the oil seal.

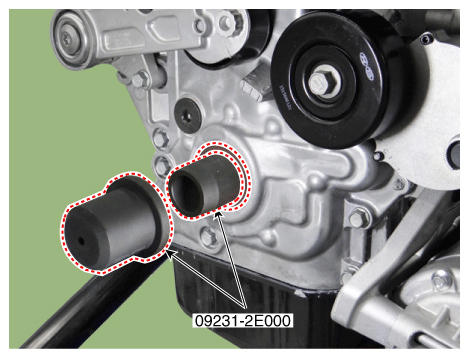

  4. Using the SST (09231-2E000), install the front oil seal (A).
    G12353050Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Always use new oil seal.
  5. Install the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")
